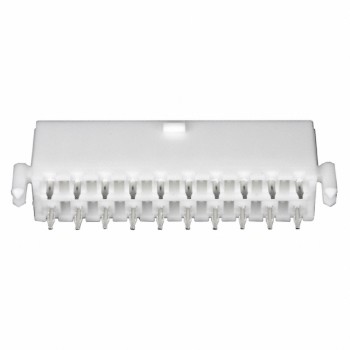

2-1761605-9
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER R/A 26POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 2-1761605-9 Datasheet
-
ECAD Model
- Share
In Stock: 1,054
Can ship immediately
Pricing:
- 1$7.74
- 10$7.43692
- 100$6.2307
- 500$5.32624
- 1,000$4.72327
Quote It
Technical Details
- Series:AMP-Latch
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:26
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.240" (6.10mm)
- Contact Length - Post:0.102" (2.60mm)
- Overall Contact Length:-
- Insulation Height:0.350" (8.89mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Polybutylene Terephthalate (PBT)
- Features:Keying Slot
- Operating Temperature:-65°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Blue
- Current Rating (Amps):1A per Contact
- Voltage Rating:250VAC
