0194270049
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER R/A 16POS 5.84MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 0194270049 Datasheet
-
ECAD Model
- Share
In Stock: 389
Can ship immediately
Pricing:
- 1$10.11
- 10$9.6656
- 100$8.12789
- 500$6.80986
- 1,000$6.01904
Quote It
Technical Details
- Series:MX150L 19427
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Blade
- Pitch - Mating:0.230" (5.84mm)
- Number of Positions:16
- Number of Rows:2
- Row Spacing - Mating:0.236" (6.00mm)
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Panel Mount, Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Locking Ramp
- Contact Length - Mating:-
- Contact Length - Post:0.130" (3.30mm)
- Overall Contact Length:-
- Insulation Height:1.247" (31.67mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:100.0µin (2.54µm)
- Contact Finish - Post:Tin
- Contact Material:Copper Alloy
- Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
- Features:Board Guide, Mounting Flange
- Operating Temperature:-
- Ingress Protection:IP67 - Dust Tight, Waterproof
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:-
Related Products

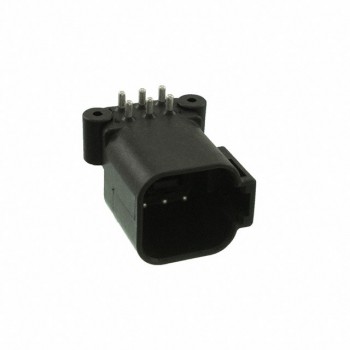

CONN HEADER R/A 6POS 4.44MM
