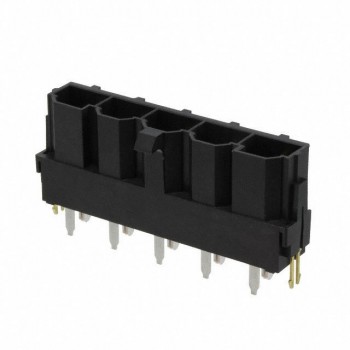

0428195212
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 5POS 10MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 0428195212 Datasheet
-
ECAD Model
- Share
In Stock: 400
Can ship immediately
Pricing:
- 1$11.06
- 10$10.57836
- 216$8.89577
- 648$7.45321
- 1,080$6.58768
Quote It
Technical Details
- Series:Mini-Fit Sr 42819
- Package:Tray
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Blade
- Pitch - Mating:0.394" (10.00mm)
- Number of Positions:5
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Locking Ramp
- Contact Length - Mating:-
- Contact Length - Post:0.138" (3.50mm)
- Overall Contact Length:-
- Insulation Height:0.827" (21.00mm)
- Contact Shape:Rectangular
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:100.0µin (2.54µm)
- Contact Finish - Post:Tin
- Contact Material:Copper Zirconium Alloy
- Insulation Material:Polyamide (PA46), Nylon 4/6, Glass Filled
- Features:Board Lock
- Operating Temperature:-
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:-
