BG303-04-A-0300-L-G
Global Connector Technology, Limited (GCT)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER R/A 4POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
-
ECAD Model
- Share
In Stock: 1,745
Can ship immediately
Pricing:
- 1$0.36
- 10$0.34105
- 100$0.24556
- 500$0.21373
- 1,000$0.18189
- 5,000$0.15916
- 10,000$0.15006
Quote It
Technical Details
- Series:BG303
- Package:Bulk
- Part Status:Active
- Connector Type:Header, Cuttable
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:4
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Unshrouded
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.118" (3.00mm)
- Contact Length - Post:0.118" (3.00mm)
- Overall Contact Length:-
- Insulation Height:0.098" (2.50mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:Flash
- Contact Finish - Post:Gold
- Contact Material:Copper Alloy
- Insulation Material:Liquid Crystal Polymer (LCP)
- Features:-
- Operating Temperature:-40°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Natural
- Current Rating (Amps):3A per Contact
- Voltage Rating:-
Related Products
CONN HEADER SMD 10POS 0.8MM
- 1: $0.72000
- 2300: $0.39528
- 4600: $0.37332
CONN HEADER SMD R/A 10POS 0.8MM
- 1: $0.78000
- 3500: $0.40426
- 7000: $0.39237

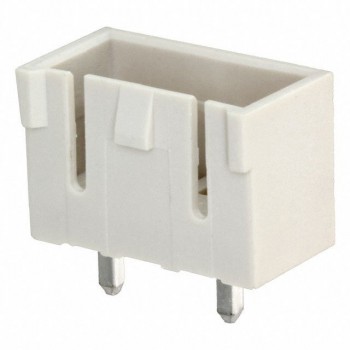

CONN HEADER VERT 2POS 4.2MM
