0050290053

Woodhead - Molex
In Stock: 790,012,132

Can ship immediately

Pricing:
  • 1$0.45
  • 10$0.426
  • 100$0.3268
  • 500$0.2842
  • 1,000$0.23447
  • 5,000$0.20605
  • 10,000$0.19184

Quote It

Technical Details

  • Series:KK254, 6373
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:4
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 1 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Friction Lock
  • Contact Length - Mating:0.286" (7.26mm)



  • Contact Length - Post:0.289" (7.34mm)
  • Overall Contact Length:0.700" (17.78mm)
  • Insulation Height:0.322" (8.18mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:60.0µin (1.52µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA), Nylon
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:White
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


DF1-6P-2.5DSA(05)

CONN HEADER VERT 6POS 2.5MM

DF1-6P-2.5DSA(05) Datasheet
  • 1: $0.45000
  • 10: $0.41727
  • 100: $0.31991

0532541070

CONN HEADER R/A 10POS 2MM

0532541070 Datasheet
  • 1: $0.45000
  • 10: $0.42384
  • 100: $0.32515

3-644457-3

CONN HEADER R/A 3POS 2.54MM

3-644457-3 Datasheet
  • 1: $0.45000
  • 10: $0.42802
  • 100: $0.29972

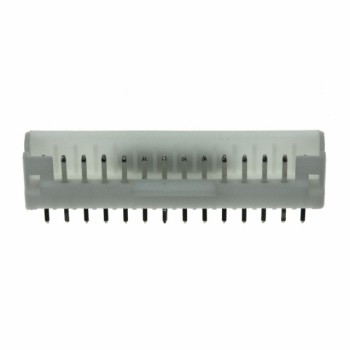

1-1735446-4

CONN HEADER VERT 14POS 2MM

1-1735446-4 Datasheet
  • 1: $0.45000
  • 10: $0.42384
  • 100: $0.32526

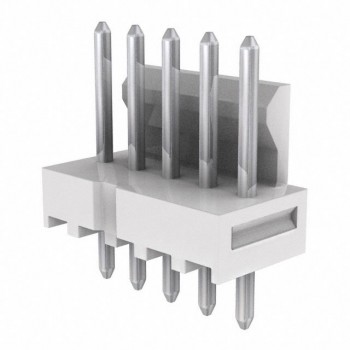

0022233050

CONN HEADER VERT 5POS 2.54MM

0022233050 Datasheet
  • 1: $0.45000
  • 10: $0.42800
  • 100: $0.29990

XG8T-0431

CONN HEADER VERT 4POS 2.54MM

XG8T-0431 Datasheet
  • 1: $0.45000
  • 10: $0.43154
  • 100: $0.30173

BE2P-SHF-1AA(LF)(SN)

CONN HEADER VERT 2POS 2.5MM

BE2P-SHF-1AA(LF)(SN) Datasheet
  • 1: $0.45000
  • 10: $0.42300
  • 100: $0.32420

DF3A-12P-2DS

CONN HEADER R/A 12POS 2MM

DF3A-12P-2DS Datasheet
  • 1: $0.45000
  • 10: $0.42384
  • 100: $0.32494

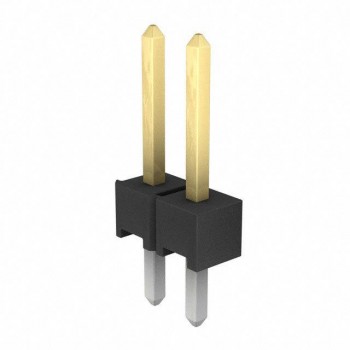

146285-2
