0554870419

Woodhead - Molex
In Stock: 10,981

Can ship immediately

Pricing:
  • 1$0.48
  • 10$0.45447
  • 100$0.34815
  • 500$0.30271
  • 1,200$0.24973
  • 6,000$0.21946
  • 10,800$0.20433

Quote It

Technical Details

  • Series:MicroTPA 55487
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:4
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Kinked Pin, Solder
  • Fastening Type:Latch Lock
  • Contact Length - Mating:0.144" (3.66mm)



  • Contact Length - Post:0.130" (3.30mm)
  • Overall Contact Length:0.604" (15.35mm)
  • Insulation Height:0.520" (13.20mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA66), Nylon 6/6, Glass Filled
  • Features:Board Guide
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:White
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


0757570131

CONN HEADER VERT 3POS 3.5MM

0757570131 Datasheet
  • 1: $0.47000
  • 10: $0.44200
  • 100: $0.33900

1586040-2

CONN HEADER VERT 2POS

1586040-2 Datasheet
  • 1: $0.47000
  • 10: $0.44251
  • 100: $0.34549

0877540462

CONN HEADER R/A 4POS 2MM

0877540462 Datasheet
  • 1: $0.47000
  • 10: $0.44200
  • 100: $0.30920

20021121-00004T4LF

CONN HEADER SMD 4POS 1.27MM

20021121-00004T4LF Datasheet
  • 1: $0.47000
  • 10: $0.44241
  • 100: $0.34535

HPH2-A-04-UA-SMT

CONN HEADER SMD 4POS 1.27MM

  • 1: $0.47000
  • 10: $0.44139
  • 100: $0.33840

0022284085

CONN HEADER VERT 8POS 2.54MM

  • 1: $0.47000

77313-818-08LF

CONN HEADER VERT 8POS 2.54MM

77313-818-08LF Datasheet
  • 1: $0.47000
  • 10: $0.43689
  • 100: $0.33466

0757570124

CONN HEADER VERT 2POS 3.5MM

0757570124 Datasheet
  • 1: $0.48000
  • 10: $0.45400
  • 100: $0.34800

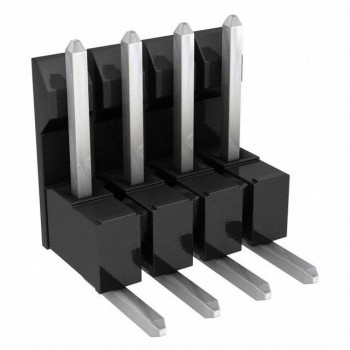

0022281040

CONN HEADER R/A 4POS 2.54MM

0022281040 Datasheet
  • 1: $0.48000
  • 10: $0.44600
  • 100: $0.34220

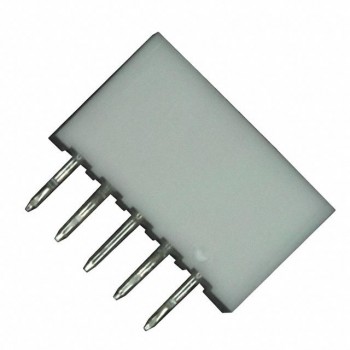

292132-5
