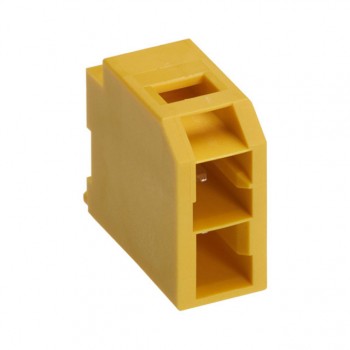

292207-9
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 9POS 1.5MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 292207-9 Datasheet
-
ECAD Model
- Share
In Stock: 10,416
Can ship immediately
Pricing:
- 1$0.65
- 10$0.61455
- 100$0.48011
- 500$0.42248
- 1,000$0.35526
- 5,000$0.31686
- 10,000$0.29766
Quote It
Technical Details
- Series:Mini CT
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.059" (1.50mm)
- Number of Positions:9
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Kinked Pin, Solder
- Fastening Type:Detent Lock
- Contact Length - Mating:0.094" (2.40mm)
- Contact Length - Post:0.118" (3.00mm)
- Overall Contact Length:0.307" (7.80mm)
- Insulation Height:0.272" (6.91mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:39.4µin (1.00µm)
- Contact Finish - Post:Tin
- Contact Material:Brass
- Insulation Material:Polyamide (PA), Nylon, Glass Filled
- Features:Board Guide
- Operating Temperature:-30°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Gray
- Current Rating (Amps):Varies by Wire Gauge
- Voltage Rating:50VAC
