0907790004

Woodhead - Molex
In Stock: 4,374

Can ship immediately

Pricing:
  • 1$0.67
  • 10$0.624
  • 100$0.4786
  • 500$0.4162
  • 1,000$0.34337
  • 5,000$0.30175
  • 10,000$0.28094

Quote It

Technical Details

  • Series:Picoflex PF-50 90779
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Blade
  • Pitch - Mating:0.050" (1.27mm)
  • Number of Positions:10
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 2 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:-



  • Contact Length - Post:0.130" (3.30mm)
  • Overall Contact Length:-
  • Insulation Height:0.252" (6.40mm)
  • Contact Shape:Rectangular
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:157.5µin (4.00µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA46), Nylon 4/6, Glass Filled
  • Features:Board Lock
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):1.2A
  • Voltage Rating:250V

Related Products


292253-8

CONN HEADER R/A 8POS 2MM

292253-8 Datasheet
  • 1: $0.67000
  • 10: $0.63603
  • 100: $0.49731

0022032082

CONN HEADER VERT 8POS 2.54MM

  • 1: $0.67000

1-1775470-0

CONN HEADER SMD 10POS 2MM

1-1775470-0 Datasheet
  • 1: $1.06000
  • 500: $0.72674
  • 1000: $0.65406

1-1775469-0

CONN HEADER SMD R/A 10POS 2MM

1-1775469-0 Datasheet
  • 1: $1.06000
  • 600: $0.72673
  • 1200: $0.65407

3-292207-0

CONN HEADER VERT 10POS 1.5MM

3-292207-0 Datasheet
  • 1: $0.69000
  • 10: $0.64958
  • 25: $0.58867

M52-040023V0345

CONN HEADER VERT 3POS 1.27MM

M52-040023V0345 Datasheet
  • 1: $0.68000
  • 10: $0.64161
  • 100: $0.49190

0903259010

CONN HEADER VERT 10POS 1.27MM

  • 1: $0.68000

0874370463

CONN HEADER SMD 4POS 1.5MM

0874370463 Datasheet
  • 1: $0.99000
  • 900: $0.59676
  • 1800: $0.51150

1040780610

CONN HEADER SMD R/A 6POS 1.25MM

1040780610 Datasheet
  • 1: $1.33000
  • 2000: $0.68625
  • 4000: $0.66338

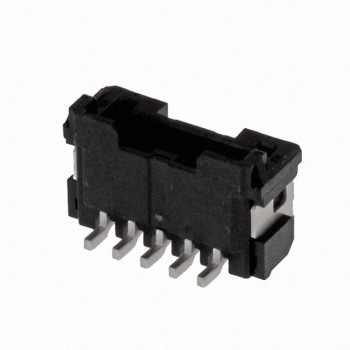

5055750571
