3-644457-6
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER R/A 6POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 3-644457-6 Datasheet
-
ECAD Model
- Share
In Stock: 21,498
Can ship immediately
Pricing:
- 1$0.73
- 10$0.68249
- 100$0.52293
- 500$0.45469
- 1,000$0.37512
- 5,000$0.32965
- 10,000$0.30691
Quote It
Technical Details
- Series:MTA-100
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:6
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Unshrouded
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:-
- Contact Length - Mating:0.260" (6.60mm)
- Contact Length - Post:0.110" (2.79mm)
- Overall Contact Length:-
- Insulation Height:0.100" (2.54mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:150.0µin (3.81µm)
- Contact Finish - Post:Tin
- Contact Material:Copper Alloy
- Insulation Material:Thermoplastic
- Features:-
- Operating Temperature:-55°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Natural
- Current Rating (Amps):Varies by Wire Gauge
- Voltage Rating:250VAC
Related Products
CONN HEADER VERT 14POS 2MM
- 1: $0.73000

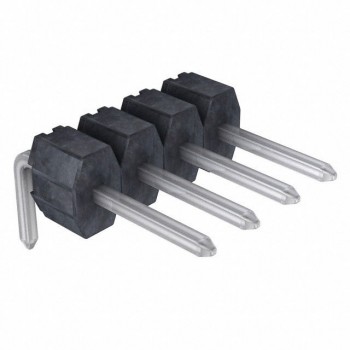

CONN HEADER R/A 4POS 2.54MM
