In Stock: 1,983

Can ship immediately

Pricing:
  • 1$0.74
  • 71$0.56269
  • 142$0.54107
  • 568$0.47614
  • 1,065$0.40039
  • 5,041$0.3571
  • 10,011$0.33547

Quote It

Technical Details

  • Series:Minitek127® 1.27mm
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.050" (1.27mm)
  • Number of Positions:8
  • Number of Rows:2
  • Row Spacing - Mating:0.050" (1.27mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.120" (3.05mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.220" (5.60mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products

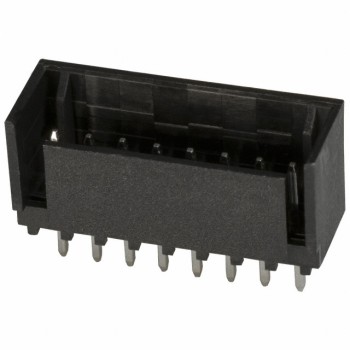

2-644486-8

CONN HEADER VERT 8POS 2.54MM

2-644486-8 Datasheet
  • 1: $0.74000
  • 10: $0.69375
  • 100: $0.53153

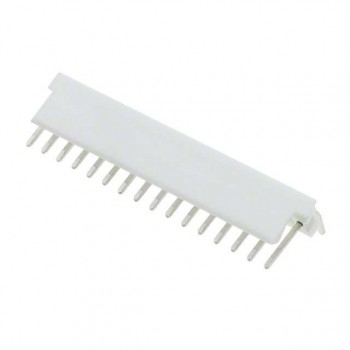

1-640457-6
