In Stock: 8,709

Can ship immediately

Pricing:
  • 1$0.86
  • 10$0.75904
  • 100$0.66276
  • 500$0.55225
  • 1,000$0.49702
  • 5,000$0.4418
  • 10,000$0.42247

Quote It

Technical Details

  • Series:MTA-100
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:3
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 1 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:-
  • Contact Length - Mating:0.295" (7.49mm)



  • Contact Length - Post:0.140" (3.56mm)
  • Overall Contact Length:0.535" (13.59mm)
  • Insulation Height:0.305" (7.75mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-55°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:250VAC

Related Products


826656-3

CONN HEADER VERT 6POS 2.54MM

826656-3 Datasheet
  • 1: $0.86000
  • 10: $0.75357
  • 100: $0.64984

0353631460

CONN HEADER R/A 14POS 2MM

  • 1: $0.86000

5-103672-4

CONN HEADER R/A 5POS 2.54MM

5-103672-4 Datasheet
  • 1: $0.86000
  • 35: $0.71352
  • 105: $0.65413

1722872102

CONN HEADER VERT 2POS 3.5MM

1722872102 Datasheet
  • 1: $0.86000
  • 10: $0.75700
  • 100: $0.65340

5-146261-3

CONN HEADER VERT 6POS 2.54MM

5-146261-3 Datasheet
  • 1: $0.86000
  • 10: $0.75680
  • 100: $0.65305

0907790006

CONN HEADER VERT 14POS 1.27MM

0907790006 Datasheet
  • 1: $0.87000
  • 10: $0.76884
  • 100: $0.66302

3522-04-0100-99

CONN HEADER VERT 4POS 2.54MM

  • 1: $0.87000
  • 10: $0.76500
  • 100: $0.66000

3210-10-001-12-00

CONN HEADER VERT 10POS 1.27MM

3210-10-001-12-00 Datasheet
  • 1: $0.88000
  • 10: $0.84480
  • 100: $0.70400

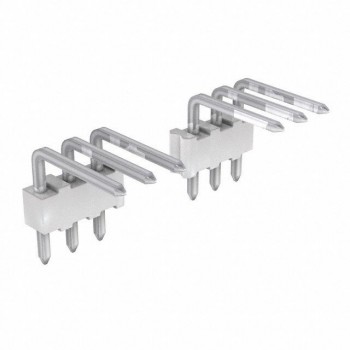

0022052081
