In Stock: 10,430

Can ship immediately

Pricing:
  • 1$0.89
  • 10$0.79153
  • 100$0.69012
  • 500$0.57516
  • 1,000$0.51765
  • 5,000$0.46013
  • 10,000$0.44

Quote It

Technical Details

  • Series:Mini CT
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.059" (1.50mm)
  • Number of Positions:17
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Kinked Pin, Solder
  • Fastening Type:Detent Lock
  • Contact Length - Mating:0.094" (2.40mm)



  • Contact Length - Post:0.118" (3.00mm)
  • Overall Contact Length:0.307" (7.80mm)
  • Insulation Height:0.272" (6.91mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:39.4µin (1.00µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA), Nylon, Glass Filled
  • Features:Board Guide
  • Operating Temperature:-30°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Gray
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:50VAC

Related Products


2310-6121-TG

CONN HEADER VERT 10POS 2.54MM

2310-6121-TG Datasheet
  • 1: $0.88000
  • 10: $0.77500
  • 100: $0.66880

826942-3

CONN HEADER VERT 6POS 2.54MM

826942-3 Datasheet
  • 1: $0.88000
  • 10: $0.77026
  • 100: $0.66435

3-641214-2

CONN HEADER R/A 2POS 2.54MM

3-641214-2 Datasheet
  • 1: $0.88000
  • 10: $0.77308
  • 100: $0.66738

1734261-5

CONN HEADER SMD R/A 5POS 1.25MM

1734261-5 Datasheet
  • 1: $1.55000
  • 1000: $0.96495
  • 2000: $0.93658

0022032091

CONN HEADER VERT 9POS 2.54MM

0022032091 Datasheet
  • 1: $0.89000
  • 10: $0.78400
  • 100: $0.67630

AWHW 14A-0202-T

CONN HEADER R/A 14POS 2.54MM

AWHW 14A-0202-T Datasheet
  • 1: $0.90000
  • 10: $0.79382
  • 220: $0.68520

1724470004

CONN HEADER VERT 4POS 4.2MM

1724470004 Datasheet
  • 1: $0.91000
  • 10: $0.79979
  • 100: $0.68998

1053092202

CONN HEADER VERT 2POS 2.5MM

1053092202 Datasheet
  • 1: $0.91000
  • 10: $0.80383
  • 300: $0.63012

B24B-PNDZS-1 (T)  (LF)(SN)

CONN HEADER VERT 24POS 2MM

  • 1: $0.90000

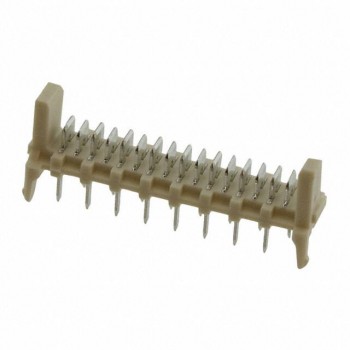

0907790007
