826468-3
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER R/A 3POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 826468-3 Datasheet
-
ECAD Model
- Share
In Stock: 4,459
Can ship immediately
Pricing:
- 1$1.3
- 10$1.14099
- 100$0.98467
- 500$0.80566
- 1,000$0.71614
- 5,000$0.62662
- 10,000$0.59529
Quote It
Technical Details
- Series:AMPMODU Mod II
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:3
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Shrouded - 2 Wall
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Latch Holder
- Contact Length - Mating:-
- Contact Length - Post:0.126" (3.20mm)
- Overall Contact Length:-
- Insulation Height:0.236" (6.00mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:3.90µin (0.099µm)
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
- Features:-
- Operating Temperature:-55°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:-
Related Products
CONN HEADER SMD 8POS 2.54MM
- 1: $1.30000
- 10: $1.14518
- 100: $0.98800
CONN HEADER VERT 10POS 4.2MM
- 1: $1.32000

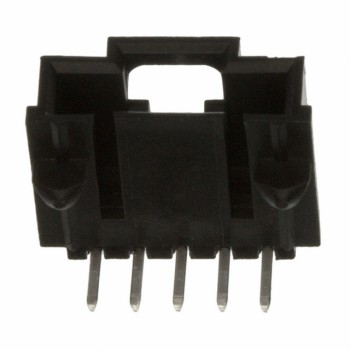

CONN HEADER R/A 5POS 2.54MM
