5030911421
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 14POS 2MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 5030911421 Datasheet
-
ECAD Model
- Share
In Stock: 3,297
Can ship immediately
Pricing:
- 1$1.41
- 10$1.24315
- 140$1.07227
- 560$0.8773
- 1,120$0.77982
- 5,040$0.68235
- 10,080$0.64822
Quote It
Technical Details
- Series:iGrid 503091
- Package:Tray
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.079" (2.00mm)
- Number of Positions:14
- Number of Rows:2
- Row Spacing - Mating:0.079" (2.00mm)
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Latch Holder
- Contact Length - Mating:-
- Contact Length - Post:0.126" (3.20mm)
- Overall Contact Length:-
- Insulation Height:0.472" (12.00mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:3.94µin (0.100µm)
- Contact Finish - Post:Gold
- Contact Material:Brass
- Insulation Material:Polyamide (PA), Nylon
- Features:Board Guide
- Operating Temperature:-40°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):Varies by Wire Gauge
- Voltage Rating:250V
Related Products

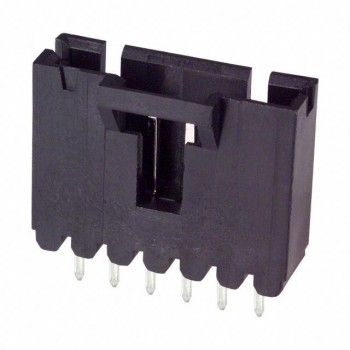

CONN HEADER VERT 10POS 2.54MM
- 1: $1.39000
- 10: $1.22394
- 100: $1.05542

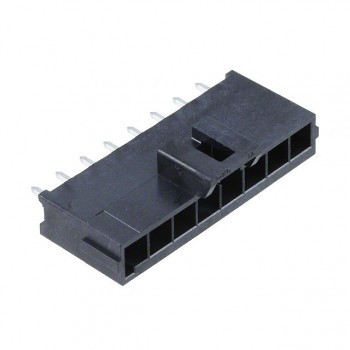

CONN HEADER VERT 7POS 2.54MM
- 1: $1.39000

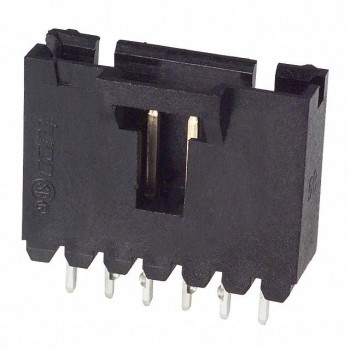

CONN HEADER VERT 16POS 2.54MM
