M22-5430405

Harwin
In Stock: 1,161

Can ship immediately

Pricing:
  • 1$1.42
  • 10$1.25236
  • 100$1.08038
  • 500$0.88395
  • 1,000$0.78573
  • 5,000$0.68752
  • 10,000$0.65314

Quote It

Technical Details

  • Series:M22
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Cuttable
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:8
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Surface Mount, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.126" (3.20mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.157" (4.00mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:Flash
  • Contact Finish - Post:-
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA6T), Nylon 6T
  • Features:Board Guide
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):1.5A per Contact
  • Voltage Rating:-

Related Products


0460150603

CONN HEADER VERT 6POS 4.2MM

0460150603 Datasheet
  • 1: $1.44000
  • 10: $1.26176
  • 100: $1.08876

1-640445-5

CONN HEADER VERT 15POS 3.96MM

1-640445-5 Datasheet
  • 1: $1.43000
  • 10: $1.29962
  • 100: $1.11393

2-1376387-3

CONN HEADER VERT 6POS 5MM

2-1376387-3 Datasheet
  • 1: $1.43000
  • 10: $1.27418
  • 100: $1.11155

5-103672-5

CONN HEADER R/A 6POS 2.54MM

5-103672-5 Datasheet
  • 1: $1.43000
  • 30: $1.18566
  • 120: $1.08688

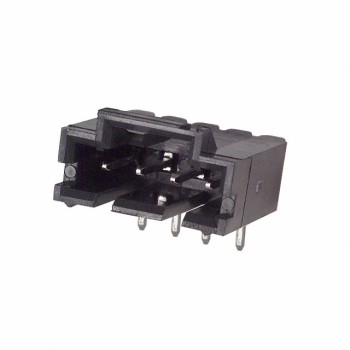

5-103634-3

CONN HEADER R/A 4POS 2.54MM

5-103634-3 Datasheet
  • 1: $1.43000
  • 42: $1.18133
  • 126: $1.08280

0901361110

CONN HEADER VERT 10POS 2.54MM

  • 1: $1.45000

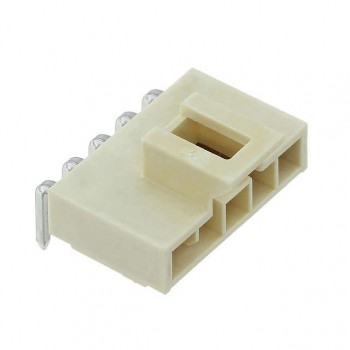

1053132105

CONN HEADER R/A 5POS 2.5MM

1053132105 Datasheet
  • 1: $1.44000
  • 10: $1.30406
  • 120: $1.11759

A3-10PA-2SV(71)

CONN HEADER SMD 10POS 2MM

A3-10PA-2SV(71) Datasheet
  • 1: $1.43000
  • 48: $1.21815
  • 144: $1.11222

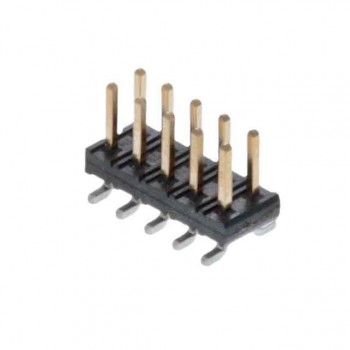

0877591064

CONN HEADER SMD 10POS 2MM

0877591064 Datasheet
  • 1: $1.43000
  • 10: $1.26000
  • 100: $1.08720

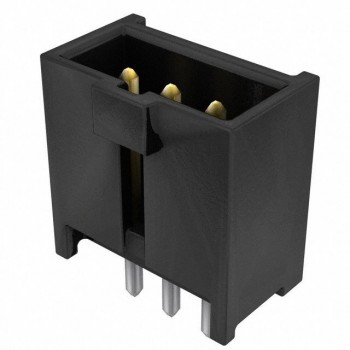

0901361303
