3522-12-0100-99

CnC Tech
In Stock: 1,762

Can ship immediately

Pricing:
  • 1$1.46
  • 10$1.28169
  • 100$1.10577
  • 500$0.90472
  • 1,600$0.75393
  • 6,400$0.70367
  • 11,200$0.66849

Quote It

Technical Details

  • Series:-
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:12
  • Number of Rows:2
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Kinked Pin, Solder
  • Fastening Type:Locking Ramp
  • Contact Length - Mating:-



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.146" (3.70mm)
  • Contact Shape:Rectangular
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA9T), Nylon 9T
  • Features:-
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:-
  • Current Rating (Amps):1A
  • Voltage Rating:500VAC

Related Products


3522-16-0101-99

CONN HEADER SMD 16POS 2.54MM

  • 1: $1.46000
  • 10: $1.32300
  • 100: $1.13400

644884-6

CONN HEADER VERT 6POS 2.54MM

644884-6 Datasheet
  • 1: $1.46000
  • 10: $1.34046
  • 100: $1.16330

0878320806

CONN HEADER SMD 8POS 2MM

0878320806 Datasheet
  • 1: $2.08000
  • 500: $1.34820
  • 1000: $1.15560

0879209112

CONN HEADER SMD 6POS 2.54MM

0879209112 Datasheet
  • 1: $2.09000
  • 250: $1.46888
  • 500: $1.35292

0022124082

CONN HEADER R/A 8POS 2.54MM

0022124082 Datasheet
  • 1: $1.47000
  • 10: $1.33159
  • 100: $1.14135

826926-8

CONN HEADER VERT 8POS 2.54MM

826926-8 Datasheet
  • 1: $1.47000
  • 10: $1.29948
  • 100: $1.12112

1053102204

CONN HEADER VERT 4POS 2.5MM

1053102204 Datasheet
  • 1: $1.48000
  • 10: $1.34619
  • 300: $1.04391

3522-12-0101-99

CONN HEADER SMD 12POS 2.54MM

  • 1: $1.48000
  • 10: $1.30529
  • 100: $1.12614

3522-18-0101-99

CONN HEADER SMD 18POS 2.54MM

  • 1: $1.48000
  • 10: $1.33895
  • 100: $1.14725

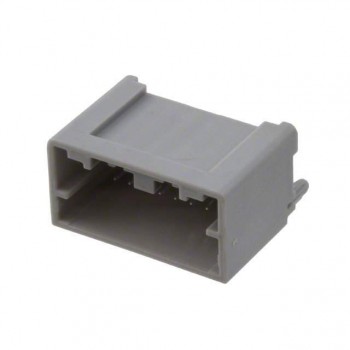

0348250125
