In Stock: 3,003

Can ship immediately

Pricing:
  • 1$1.7
  • 35$1.45046
  • 105$1.32438
  • 525$1.10368
  • 1,015$0.94602
  • 5,005$0.8388
  • 10,010$0.81988

Quote It

Technical Details

  • Series:AMPMODU MTE
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:5
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:0.145" (3.68mm)
  • Overall Contact Length:-
  • Insulation Height:0.200" (5.08mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:15.0µin (0.38µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Thermoplastic
  • Features:Board Lock, Keying Slot
  • Operating Temperature:-65°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


0022041101

CONN HEADER VERT 10POS 2.5MM

  • 1: $1.70000

2-1586041-4

CONN HEADER R/A 24POS 4.2MM

2-1586041-4 Datasheet
  • 1: $1.70000
  • 10: $1.54977
  • 100: $1.34547

3522-22-0101-99

CONN HEADER SMD 22POS 2.54MM

  • 1: $1.70000
  • 10: $1.54400
  • 100: $1.32300

1053111206

CONN HEADER VERT 6POS 2.5MM

1053111206 Datasheet
  • 1: $1.73000
  • 90: $1.43154
  • 180: $1.37188

2-1586038-4

CONN HEADER VERT 24POS 4.2MM

2-1586038-4 Datasheet
  • 1: $1.72000
  • 10: $1.57200
  • 105: $1.36371

0436500222

CONN HEADER SMD 2POS 3MM

0436500222 Datasheet
  • 1: $2.44000
  • 200: $1.89965
  • 400: $1.71875

826469-3

CONN HEADER VERT 6POS 2.54MM

826469-3 Datasheet
  • 1: $1.72000
  • 10: $1.56364
  • 100: $1.34045

M50-3900642

CONN HEADER R/A 12POS 1.27MM

M50-3900642 Datasheet
  • 1: $1.72000
  • 10: $1.56268
  • 100: $1.33908

0901200132

CONN HEADER VERT 12POS 2.54MM

0901200132 Datasheet
  • 1: $1.73000
  • 10: $1.56800
  • 100: $1.34400

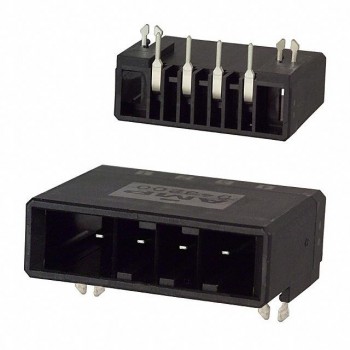

1-179277-5
