0705550074
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant

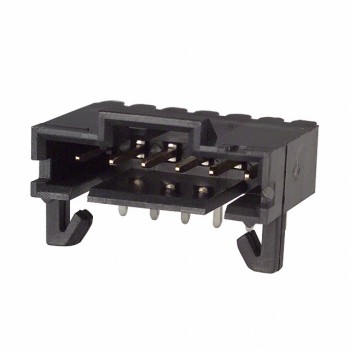

- DescriptionCONN HEADER R/A 5POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 0705550074 Datasheet
-
ECAD Model
- Share
In Stock: 1,395
Can ship immediately
Pricing:
- 1$1.73
- 10$1.57015
- 100$1.34616
- 500$1.12177
- 1,280$0.96152
- 5,120$0.85255
- 10,240$0.83331
Quote It
Technical Details
- Series:SL 70555
- Package:Tube
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:5
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Latch Holder
- Contact Length - Mating:0.240" (6.10mm)
- Contact Length - Post:0.130" (3.30mm)
- Overall Contact Length:-
- Insulation Height:0.215" (5.45mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Polyester, Glass Filled
- Features:Board Guide
- Operating Temperature:-40°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:250V
