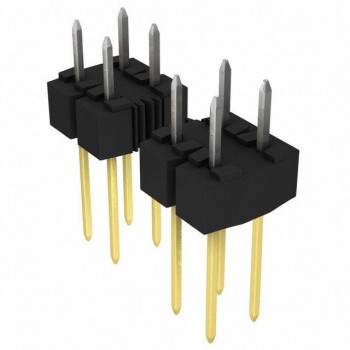

1-825440-5
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 30POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 1-825440-5 Datasheet
-
ECAD Model
- Share
In Stock: 522
Can ship immediately
Pricing:
- 1$3.82
- 10$3.66975
- 100$3.05816
- 500$2.59945
- 1,000$2.21717
Quote It
Technical Details
- Series:AMPMODU Mod II
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:30
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Unshrouded
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.264" (6.70mm)
- Contact Length - Post:0.126" (3.20mm)
- Overall Contact Length:0.500" (12.70mm)
- Insulation Height:0.110" (2.79mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:3.90µin (0.099µm)
- Contact Finish - Post:Tin
- Contact Material:Brass
- Insulation Material:Polybutylene Terephthalate (PBT)
- Features:-
- Operating Temperature:-65°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Green
- Current Rating (Amps):-
- Voltage Rating:-
