5104338-9
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 50POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 5104338-9 Datasheet
-
ECAD Model
- Share
In Stock: 416
Can ship immediately
Pricing:
- 1$4.21
- 35$3.75754
- 105$3.45072
- 525$2.99062
- 1,015$2.68388
Quote It
Technical Details
- Series:AMP-Latch
- Package:Tube
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:50
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Kinked Pin, Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.240" (6.10mm)
- Contact Length - Post:0.120" (3.05mm)
- Overall Contact Length:-
- Insulation Height:0.385" (9.78mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold or Gold-Palladium
- Contact Finish Thickness - Mating:15.0µin (0.38µm)
- Contact Finish - Post:Tin
- Contact Material:Brass
- Insulation Material:Polyphthalamide (PPA), Glass Filled
- Features:Keying Slot
- Operating Temperature:-65°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):1A per Contact
- Voltage Rating:-
Related Products

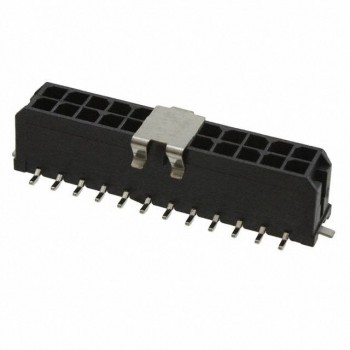

CONN HEADER SMD 12POS 2.54MM
