CWN-300-34-0000

CW Industries
In Stock: 361

Can ship immediately

Pricing:
  • 1$4.68
  • 10$4.48708
  • 100$3.73924
  • 500$3.17835
  • 1,000$2.71095

Quote It

Technical Details

  • Series:CWN
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:34
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.240" (6.10mm)



  • Contact Length - Post:0.090" (2.29mm)
  • Overall Contact Length:-
  • Insulation Height:0.291" (7.40mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Nickel
  • Contact Material:Phosphor Bronze
  • Insulation Material:Thermoplastic
  • Features:Keying Slot, Mounting Flange
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Blue
  • Current Rating (Amps):1A
  • Voltage Rating:-

Related Products


1747994-1

CONN HEADER VERT 16POS 2.5MM

1747994-1 Datasheet
  • 1: $4.69000
  • 10: $4.50375
  • 100: $3.75301

5103311-7

CONN HEADER R/A 34POS 2.54MM

5103311-7 Datasheet
  • 1: $4.69000
  • 50: $3.99416
  • 100: $3.82051

GT32-19DP-0.75H

CONN HEADER SMD R/A 19POS 1.5MM

GT32-19DP-0.75H Datasheet
  • 1: $4.69000
  • 100: $4.54000

0444321601

CONN HEADER VERT 16POS 3MM

  • 1: $4.77000

0015912075

CONN HEADER SMD R/A 7POS 2.54MM

0015912075 Datasheet
  • 1: $4.72000
  • 10: $4.53403
  • 100: $3.77822

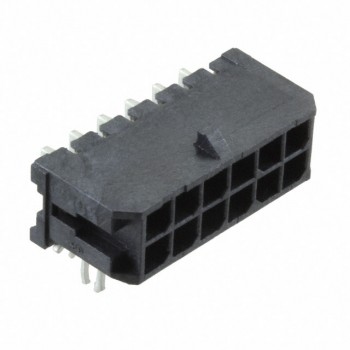

0430451223

CONN HEADER R/A 12POS 3MM

0430451223 Datasheet
  • 1: $4.78000
  • 10: $4.58900
  • 25: $4.20680

XG4C-6434

CONN HEADER R/A 64POS 2.54MM

XG4C-6434 Datasheet
  • 1: $4.79000
  • 30: $4.21079
  • 120: $3.82799

09195406324

CONN HEADER VERT 40POS 2.54MM

09195406324 Datasheet
  • 1: $4.75000
  • 10: $4.55473
  • 25: $4.17517

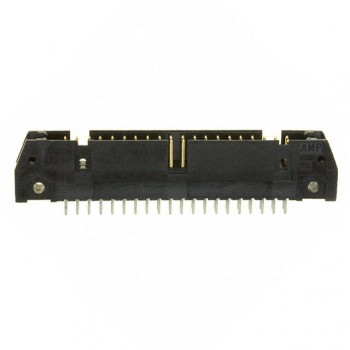

5102156-9

CONN HEADER VERT 40POS 2.54MM

5102156-9 Datasheet
  • 1: $4.75000
  • 10: $4.55568
  • 100: $3.79625

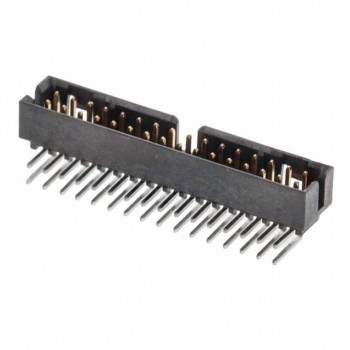

0878333221
