61003621121
Würth Elektronik Midcom
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER SMD 36POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
-
ECAD Model
- Share
In Stock: 571
Can ship immediately
Pricing:
- 1$4.93
- 13$4.18
- 26$3.48308
- 52$2.90308
- 104$2.63904
- 208$2.39899
Quote It
Technical Details
- Series:WR-PHD
- Package:Tube
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:36
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Unshrouded
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.236" (6.00mm)
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.100" (2.54mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:-
- Contact Material:Copper Alloy
- Insulation Material:Polyamide (PA6T), Nylon 6T
- Features:-
- Operating Temperature:-40°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):3A
- Voltage Rating:250V
Related Products

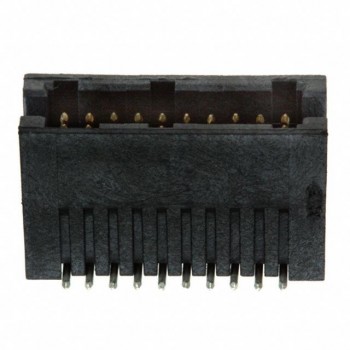

CONN HEADER R/A 24POS 2.54MM
