45208-220230

3M
In Stock: 802

Can ship immediately

Pricing:
  • 1$7.64
  • 500$4.8512
  • 1,000$4.2448
  • 1,500$4.15384

Quote It

Technical Details

  • Series:452
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.050" (1.27mm)
  • Number of Positions:8
  • Number of Rows:2
  • Row Spacing - Mating:0.050" (1.27mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Latch Lock/Eject Hooks, Short
  • Contact Length - Mating:-



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.222" (5.65mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Liquid Crystal Polymer (LCP)
  • Features:Keying Slot, Pick and Place
  • Operating Temperature:-65°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:-
  • Current Rating (Amps):1A
  • Voltage Rating:125V

Related Products


M225-5205046

CONN HEADER VERT 50POS 2MM

  • 1: $5.10000
  • 12: $4.89608
  • 100: $4.08000

0430451622

CONN HEADER R/A 16POS 3MM

0430451622 Datasheet
  • 1: $5.18000
  • 10: $4.97098
  • 25: $4.55678

6-103908-5

CONN HEADER VERT 16POS 2.54MM

6-103908-5 Datasheet
  • 1: $5.14000
  • 12: $4.93734
  • 108: $4.11470

M80-8681622

CONN HEADER R/A 16POS 2MM

M80-8681622 Datasheet
  • 1: $5.14000
  • 13: $4.93424
  • 104: $4.11200

178328-5

CONN HEADER VERT 20POS 3.81MM

178328-5 Datasheet
  • 1: $5.15000
  • 10: $4.94580
  • 100: $4.12180

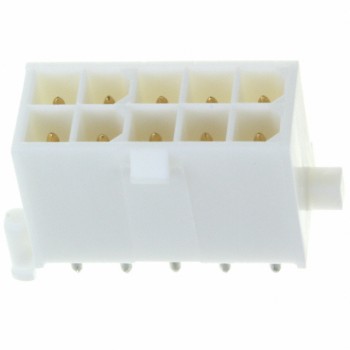

1-770858-1

CONN HEADER VERT 10POS 4.14MM

1-770858-1 Datasheet
  • 1: $5.16000
  • 10: $4.95507
  • 100: $4.12926

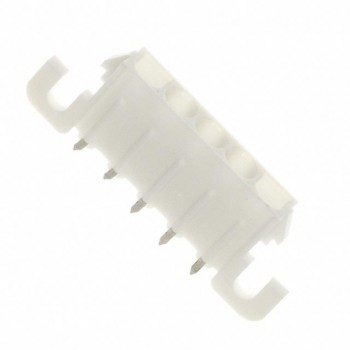

3-350945-0

CONN HEADER R/A 5POS 6.35MM

3-350945-0 Datasheet
  • 1: $5.16000
  • 10: $4.94954
  • 100: $4.12426

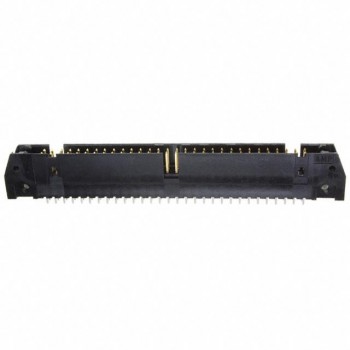

1-5102154-1
