0449146203

Woodhead - Molex
In Stock: 716

Can ship immediately

Pricing:
  • 1$5.34
  • 10$5.12862
  • 100$4.27382
  • 500$3.63276
  • 1,008$3.09851

Quote It

Technical Details

  • Series:Micro-Fit 3.0 CPI 44914
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.118" (3.00mm)
  • Number of Positions:12
  • Number of Rows:2
  • Row Spacing - Mating:0.118" (3.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Press-Fit, Solder
  • Fastening Type:Locking Ramp
  • Contact Length - Mating:-



  • Contact Length - Post:0.125" (3.18mm)
  • Overall Contact Length:-
  • Insulation Height:0.390" (9.91mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Modified Tin/Brass Alloy
  • Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
  • Features:Board Guide
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


1-5102159-0

CONN HEADER R/A 50POS 2.54MM

1-5102159-0 Datasheet
  • 1: $5.28000
  • 10: $5.06815
  • 100: $4.22357

M80-8672022

CONN HEADER VERT 20POS 2MM

M80-8672022 Datasheet
  • 1: $5.29000
  • 10: $5.08050
  • 100: $4.23410

4-641126-5

CONN HEADER VERT 15POS 2.54MM

4-641126-5 Datasheet
  • 1: $5.30000
  • 10: $5.09631
  • 100: $4.31238

0705550044

CONN HEADER R/A 10POS 2.54MM

0705550044 Datasheet
  • 1: $5.35000
  • 10: $5.13600
  • 100: $4.28000

102618-8

CONN HEADER VERT 20POS 2.54MM

102618-8 Datasheet
  • 1: $5.42000
  • 10: $5.20054
  • 176: $4.33341

1-5103311-0

CONN HEADER R/A 50POS 2.54MM

1-5103311-0 Datasheet
  • 1: $5.37000
  • 35: $4.72802
  • 105: $4.29807

5-794626-0

CONN HEADER SMD R/A 20POS 3MM

5-794626-0 Datasheet
  • 1: $6.41000
  • 150: $5.60847
  • 300: $5.07430

0039299145

CONN HEADER VERT 14POS 4.2MM

0039299145 Datasheet
  • 1: $5.43000
  • 10: $5.21098
  • 100: $4.34259

G125-MV21005L2P

CONN HEADER VERT 10POS 1.25MM

G125-MV21005L2P Datasheet
  • 1: $5.38000
  • 10: $5.15917
  • 100: $4.29967

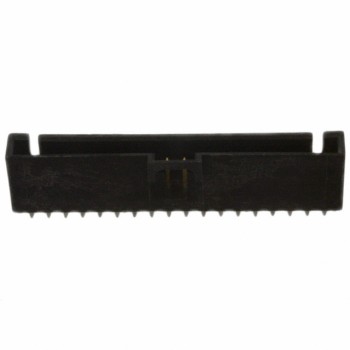

0705430017
