In Stock: 443

Can ship immediately

Pricing:
  • 1$5.98
  • 10$5.732
  • 100$4.735
  • 500$3.98736
  • 1,000$3.5997

Quote It

Technical Details

  • Series:-
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.050" (1.27mm)
  • Number of Positions:100
  • Number of Rows:2
  • Row Spacing - Mating:0.050" (1.27mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.118" (3.00mm)



  • Contact Length - Post:0.091" (2.30mm)
  • Overall Contact Length:0.248" (6.30mm)
  • Insulation Height:0.039" (1.00mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:Flash
  • Contact Finish - Post:Gold
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA9T), Nylon 9T
  • Features:-
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:-
  • Current Rating (Amps):1A
  • Voltage Rating:-

Related Products


5-102617-6

CONN HEADER R/A 16POS 2.54MM

5-102617-6 Datasheet
  • 1: $6.06000
  • 10: $5.81265
  • 208: $4.84388

0877595050

CONN HEADER SMD 50POS 2MM

0877595050 Datasheet
  • 1: $6.00000
  • 10: $5.76175
  • 450: $4.20130

929550-01-36-I

CONN HEADER R/A 36POS 2.54MM

929550-01-36-I Datasheet
  • 1: $6.01000
  • 10: $5.75900
  • 100: $4.75760

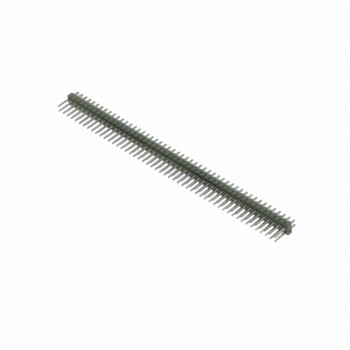

5-826925-0

CONN HEADER VERT 100POS 2.54MM

5-826925-0 Datasheet
  • 1: $6.01000
  • 10: $5.76658
  • 100: $4.80574

45212-620230

CONN HEADER VERT 12POS 1.27MM

45212-620230 Datasheet
  • 1: $6.07000
  • 10: $5.82699
  • 100: $4.85600

N3433-6002RB

CONN HEADER VERT 50POS 2.54MM

N3433-6002RB Datasheet
  • 1: $6.02000
  • 10: $5.77899
  • 100: $4.81600

N3433-5002RB

CONN HEADER R/A 50POS 2.54MM

N3433-5002RB Datasheet
  • 1: $6.02000
  • 10: $5.77899
  • 100: $4.81600

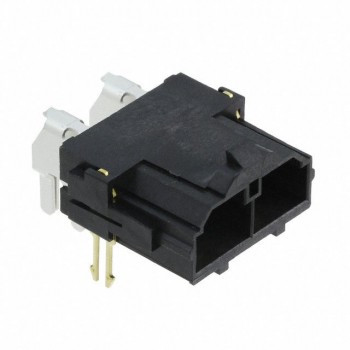

0428202233

CONN HEADER R/A 2POS 10MM

0428202233 Datasheet
  • 1: $6.03000
  • 10: $5.78700
  • 460: $4.21943

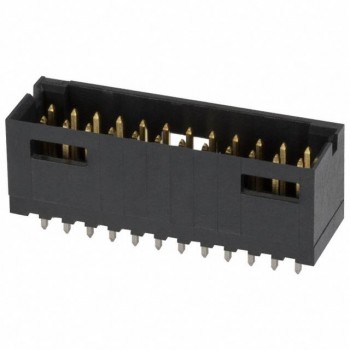

6-102618-0

CONN HEADER VERT 24POS 2.54MM

6-102618-0 Datasheet
  • 1: $6.10000
  • 10: $5.85600
  • 144: $4.88038

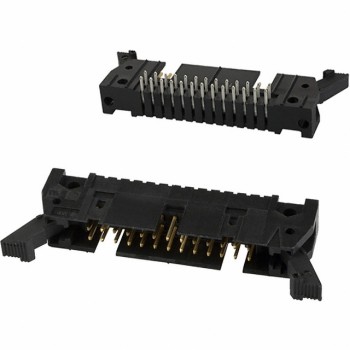

5499913-6
