15111002601000
HARTING
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER SMD 100POS 1.27MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 15111002601000 Datasheet
-
ECAD Model
- Share
In Stock: 479
Can ship immediately
Pricing:
- 1$10.09
- 280$6.59236
- 560$6.1928
- 840$5.79327
- 1,400$5.47364
Quote It
Technical Details
- Series:har-flex®
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.050" (1.27mm)
- Number of Positions:100
- Number of Rows:2
- Row Spacing - Mating:0.050" (1.27mm)
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.157" (4.00mm)
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.260" (6.60mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin
- Contact Material:Copper Alloy
- Insulation Material:Liquid Crystal Polymer (LCP)
- Features:Board Guide, Pick and Place, Solder Retention
- Operating Temperature:-55°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:-
Related Products

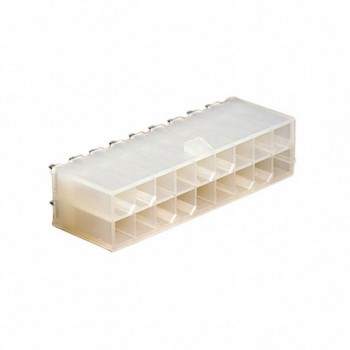

CONN HEADER VERT 18POS 4.2MM
