0430452202

Woodhead - Molex
In Stock: 538

Can ship immediately

Pricing:
  • 1$8.83

Quote It

Technical Details

  • Series:Micro-Fit 3.0 43045
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.118" (3.00mm)
  • Number of Positions:22
  • Number of Rows:2
  • Row Spacing - Mating:0.118" (3.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Locking Ramp
  • Contact Length - Mating:-



  • Contact Length - Post:0.125" (3.18mm)
  • Overall Contact Length:-
  • Insulation Height:0.290" (7.37mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
  • Features:Board Lock
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):8A
  • Voltage Rating:600V

Related Products


1658694-4

CONN HEADER VERT 50POS 2.54MM

1658694-4 Datasheet
  • 1: $8.77000
  • 10: $8.43756
  • 100: $7.08748

0705550050

CONN HEADER R/A 16POS 2.54MM

0705550050 Datasheet
  • 1: $8.86000
  • 10: $8.47350
  • 100: $7.12551

65863-620LF

CONN HEADER VERT 64POS 2.54MM

65863-620LF Datasheet
  • 1: $8.95000
  • 10: $8.59703
  • 100: $7.34353

0026615120

CONN HEADER R/A 12POS 3.96MM

0026615120 Datasheet
  • 1: $8.89000
  • 10: $8.50700
  • 100: $7.15360

0437590001

CONN HEADER R/A 36POS 4.2MM

0437590001 Datasheet
  • 1: $9.00000
  • 10: $8.60808
  • 160: $7.23889

M80-5010622

CONN HEADER VERT 6POS 2MM

M80-5010622 Datasheet
  • 1: $9.03000
  • 16: $8.63691
  • 112: $7.26300

3-1761607-1

CONN HEADER R/A 34POS 2.54MM

3-1761607-1 Datasheet
  • 1: $9.05000
  • 10: $8.68350
  • 100: $7.41701

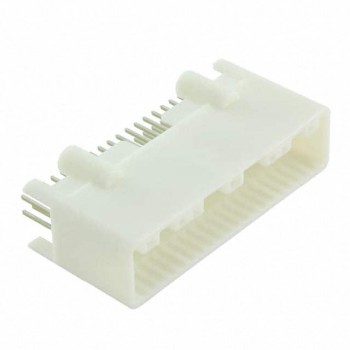

1376113-2

CONN HEADER VERT 40POS 2.2MM

  • 1: $9.06000
  • 18: $8.66107
  • 108: $7.28317

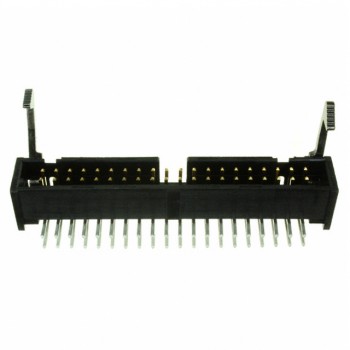

1-1761607-3

CONN HEADER R/A 40POS 2.54MM

1-1761607-3 Datasheet
  • 1: $9.08000
  • 18: $8.70985
  • 108: $7.43987

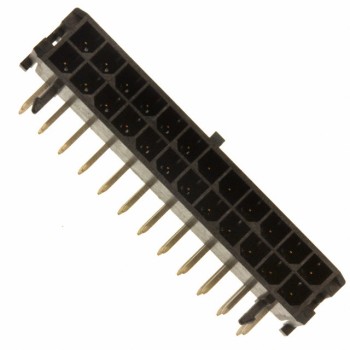

0430452402
