In Stock: 633

Can ship immediately

Pricing:
  • 1$10.39
  • 10$9.94009
  • 100$8.35883
  • 500$7.00331
  • 1,000$6.19002

Quote It

Technical Details

  • Series:AMPMODU Mod II
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:100
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.264" (6.70mm)



  • Contact Length - Post:0.126" (3.20mm)
  • Overall Contact Length:0.500" (12.70mm)
  • Insulation Height:0.110" (2.79mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:3.90µin (0.099µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polybutylene Terephthalate (PBT)
  • Features:-
  • Operating Temperature:-65°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Green
  • Current Rating (Amps):5A
  • Voltage Rating:-

Related Products


776267-4

CONN HEADER R/A 14POS 4MM

776267-4 Datasheet
  • 1: $10.40000
  • 10: $9.96950
  • 100: $8.23568

0428204223

CONN HEADER R/A 4POS 10MM

0428204223 Datasheet
  • 1: $10.43000
  • 10: $9.97900
  • 240: $8.39142

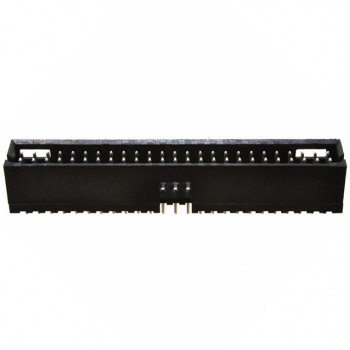

7-87589-1

CONN HEADER VERT 50POS 2.54MM

7-87589-1 Datasheet
  • 1: $10.53000
  • 64: $8.69661
  • 128: $8.46765

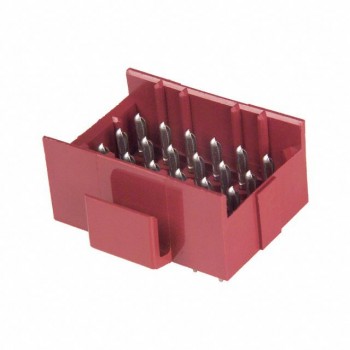

640505-3

CONN HEADER VERT 24POS 4.2MM

640505-3 Datasheet
  • 1: $10.45000
  • 10: $9.99565
  • 100: $8.40532

929665-01-36-I

CONN HEADER VERT 72POS 2.54MM

929665-01-36-I Datasheet
  • 1: $10.61000
  • 10: $10.14562
  • 100: $8.53121

929665-08-36-I

CONN HEADER VERT 72POS 2.54MM

929665-08-36-I Datasheet
  • 1: $10.61000
  • 10: $10.14562
  • 100: $8.53121

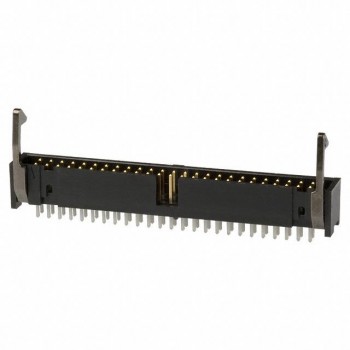

1-1761608-5

CONN HEADER VERT 50POS 2.54MM

1-1761608-5 Datasheet
  • 1: $10.64000
  • 14: $10.21857
  • 105: $8.72838

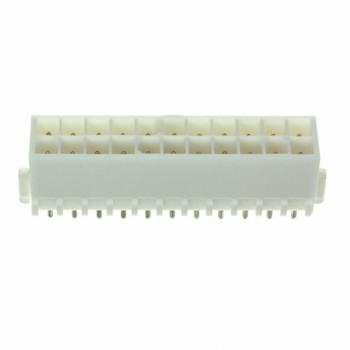

1-794071-1

CONN HEADER VERT 22POS 4.14MM

1-794071-1 Datasheet
  • 1: $10.65000
  • 10: $10.18413
  • 100: $8.56396

850-10-050-30-001000

CONN HEADER SMD 50POS 1.27MM

850-10-050-30-001000 Datasheet
  • 1: $10.85000
  • 10: $10.37937
  • 100: $8.72834

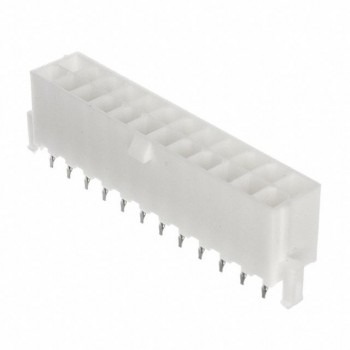

0039289248
