M80-5111422

Harwin
In Stock: 1,291

Can ship immediately

Pricing:
  • 1$13
  • 11$11.81723
  • 110$10.04498
  • 506$8.56777
  • 1,001$7.85871

Quote It

Technical Details

  • Series:Datamate J-Tek
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:14
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Threaded
  • Contact Length - Mating:-



  • Contact Length - Post:0.173" (4.40mm)
  • Overall Contact Length:-
  • Insulation Height:0.220" (5.60mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:29.5µin (0.75µm)
  • Contact Finish - Post:Tin-Lead
  • Contact Material:Phosphor Bronze
  • Insulation Material:Polyphenylene Sulfide (PPS), Glass Filled
  • Features:Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2.2A
  • Voltage Rating:800V

Related Products


0438790029

CONN HEADER VERT 18POS 4.2MM

  • 1: $13.18000

929667-02-36-I

CONN HEADER R/A 72POS 2.54MM

929667-02-36-I Datasheet
  • 1: $13.08000
  • 10: $11.89421
  • 100: $10.11008

929667-04-36-I

CONN HEADER R/A 72POS 2.54MM

929667-04-36-I Datasheet
  • 1: $13.08000
  • 10: $11.89421
  • 100: $10.11008

3-1761605-5

CONN HEADER R/A 50POS 2.54MM

3-1761605-5 Datasheet
  • 1: $13.16000
  • 10: $11.96721
  • 100: $10.17172

1-776200-2

CONN HEADER VERT 23POS 4MM

1-776200-2 Datasheet
  • 1: $13.18000
  • 10: $12.60284
  • 100: $10.59784

1-770974-1

CONN HEADER R/A 16POS 4.14MM

1-770974-1 Datasheet
  • 1: $13.22000
  • 10: $12.01770
  • 100: $10.21468

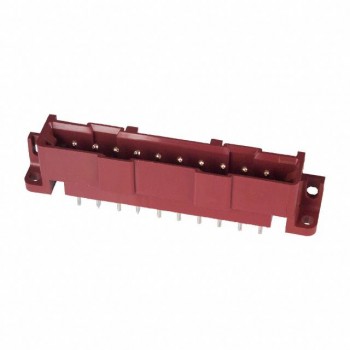

207584-8

CONN HEADER VERT 10POS 5MM

207584-8 Datasheet
  • 1: $13.84000
  • 14: $12.58576
  • 105: $10.69812

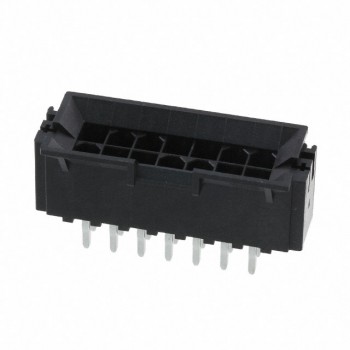

0438790060

CONN HEADER VERT 14POS 4.2MM

0438790060 Datasheet
  • 1: $14.28000
  • 10: $12.98026
  • 320: $10.05985

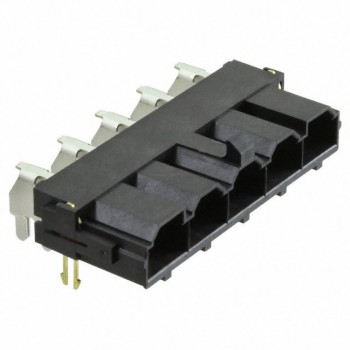

0428205213
