In Stock: 434

Can ship immediately

Pricing:
  • 1$17.63
  • 10$16.02412
  • 100$13.6205
  • 500$11.61749
  • 1,000$10.65604

Quote It

Technical Details

  • Series:MR (Miniature Rectangular)
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.165" (4.20mm)
  • Number of Positions:9
  • Number of Rows:3
  • Row Spacing - Mating:0.165" (4.20mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Latch Lock
  • Contact Length - Mating:0.220" (5.59mm)



  • Contact Length - Post:0.210" (5.33mm)
  • Overall Contact Length:-
  • Insulation Height:0.531" (13.50mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin-Lead
  • Contact Material:Phosphor Bronze
  • Insulation Material:Polyamide (PA), Nylon
  • Features:-
  • Operating Temperature:-55°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black, Red
  • Current Rating (Amps):6A
  • Voltage Rating:250VAC

Related Products


2-103168-3

CONN HEADER VERT 50POS 2.54MM

2-103168-3 Datasheet
  • 1: $17.86000
  • 32: $14.88773
  • 128: $12.76078

G125-MS15005L0P

CONN HEADER SMD 50POS 1.25MM

G125-MS15005L0P Datasheet
  • 1: $18.00000
  • 10: $16.71669
  • 100: $12.85887

0313872002

CONN HEADER VERT 73POS 2.54MM

0313872002 Datasheet
  • 1: $18.04000
  • 10: $16.75285
  • 100: $12.88688

776163-4

CONN HEADER R/A 35POS 4MM

776163-4 Datasheet
  • 1: $18.10000
  • 10: $16.44909
  • 100: $13.98172

0313872014

CONN HEADER VERT 73POS 2.54MM

0313872014 Datasheet
  • 1: $16.64000
  • 10: $15.45274
  • 100: $11.88678

1-776180-1

CONN HEADER R/A 35POS 4MM

1-776180-1 Datasheet
  • 1: $18.65000
  • 10: $16.95720
  • 100: $14.41362

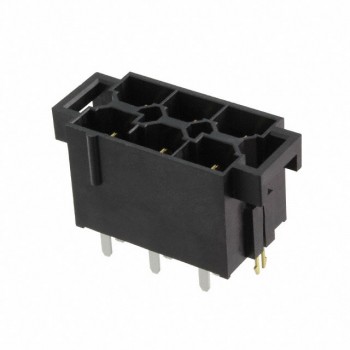

0439151206

CONN HEADER VERT 6POS 10MM

0439151206 Datasheet
  • 1: $19.17000
  • 10: $17.79740
  • 196: $13.69028

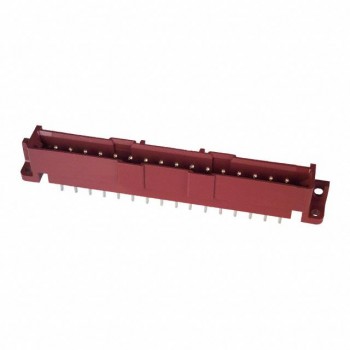

207599-7

CONN HEADER VERT 16POS 5MM

207599-7 Datasheet
  • 1: $19.28000
  • 10: $17.89908
  • 100: $13.76821

830-10-050-20-001000

CONN HEADER R/A 50POS 2MM

830-10-050-20-001000 Datasheet
  • 1: $19.35000
  • 10: $17.97098
  • 100: $13.82357

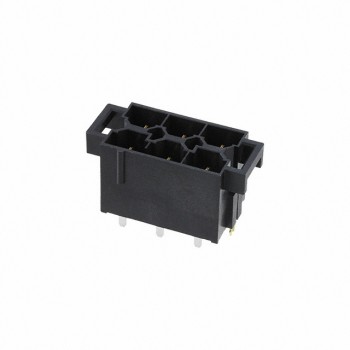

0439151201
