2-640502-2

Tyco Electronics
In Stock: 302

Can ship immediately

Pricing:
  • 1$25.84
  • 10$23.32705
  • 100$20.25432
  • 500$18.5781

Quote It

Technical Details

  • Series:MR (Miniature Rectangular)
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.165" (4.20mm)
  • Number of Positions:12
  • Number of Rows:3
  • Row Spacing - Mating:0.165" (4.20mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Latch Lock
  • Contact Length - Mating:0.220" (5.59mm)



  • Contact Length - Post:0.150" (3.81mm)
  • Overall Contact Length:-
  • Insulation Height:0.531" (13.50mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Polyamide (PA), Nylon
  • Features:-
  • Operating Temperature:-55°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black, Red
  • Current Rating (Amps):6A
  • Voltage Rating:250VAC

Related Products


2102060-4

CONN HEADER SMD 114POS 1.27MM

2102060-4 Datasheet
  • 1: $32.17000
  • 230: $24.47600

2236454-1

CONN HEADER VERT 7POS

  • 1: $28.40000
  • 10: $25.63600
  • 25: $24.56160

M80-5000000M3-06-332-00-000

CONN HEADER VERT 6POS 4MM

M80-5000000M3-06-332-00-000 Datasheet
  • 1: $29.05000
  • 14: $26.22071
  • 105: $22.76648

M83-LMT1M2N96-0000-000

CONN HEADER VERT 96POS 2MM

M83-LMT1M2N96-0000-000 Datasheet
  • 1: $29.71000
  • 12: $26.82049
  • 36: $25.69588

732-8255-22

CONN HEADER VERT 20POS

  • 1: $30.30000
  • 10: $27.34828
  • 25: $26.61121

1-5178203-6

CONN HEADER BRD EDGE 100POS

1-5178203-6 Datasheet
  • 1: $44.75000
  • 12: $40.39575
  • 100: $35.07391

DT13-24PAB-R015

CONN HEADER R/A 48POS 4.44MM

DT13-24PAB-R015 Datasheet
  • 1: $159.92000
  • 10: $150.50674
  • 25: $145.80340

52025-02-0100-01

WIRE-TO BOARD WAFER, 2.5MM, 2 CO

  • 1: $0.10000

51025-02-0100-01

WIRE-TO BOARD WAFER, 2.5MM, 2 CO

  • 1: $0.10000

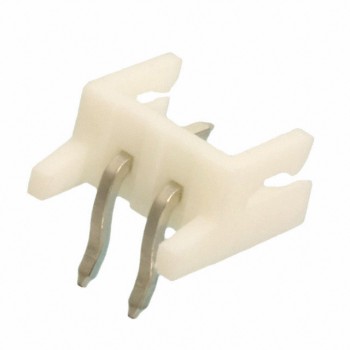

440053-2
