In Stock: 2,161

Can ship immediately

Pricing:
  • 1$0.44
  • 10$0.419
  • 100$0.2996
  • 500$0.26008
  • 1,000$0.22051
  • 5,000$0.19224
  • 10,000$0.18093

Quote It

Technical Details

  • Series:MTA-156
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.156" (3.96mm)
  • Number of Positions:3
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:2
  • Style:Board to Cable/Wire
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:-
  • Contact Length - Mating:0.400" (10.16mm)



  • Contact Length - Post:0.125" (3.18mm)
  • Overall Contact Length:0.650" (16.51mm)
  • Insulation Height:0.125" (3.18mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic, Glass Filled
  • Features:-
  • Operating Temperature:-55°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:600VAC

Related Products


M22-2030605

CONN HEADER R/A 6POS 2MM

M22-2030605 Datasheet
  • 1: $0.44000
  • 10: $0.41171
  • 100: $0.31565

2-292161-3

CONN HEADER VERT 3POS 2MM

2-292161-3 Datasheet
  • 1: $0.45000
  • 10: $0.42593
  • 100: $0.29794

53025-08-0100-01

WIRE-TO BOARD WAFER, 2.5MM, 8 CO

  • 1: $0.45000

4282-1-0200-04-SP

CONN HEADER R/A 4POS DUAL 94V-0

  • 1: $0.45000

52125-12-0200-01

WIRE-TO BOARD HEADER, 2.5MM, 12

  • 1: $0.45000

51125-11-0200-01

WIRE-TO BOARD HEADER, 2.5MM, 11

  • 1: $0.45000

PH1RB-19-UA

CONN HEADER R/A 19POS 2.54MM

  • 1: $0.45000
  • 10: $0.42545
  • 100: $0.32605

0780470443

CONN HEADER SMD 4POS 1.5MM

0780470443 Datasheet
  • 1: $0.82000
  • 1000: $0.45152
  • 2000: $0.42330

0930700004

CONN HEADER VERT 3POS 2.5MM

0930700004 Datasheet
  • 1: $0.46000
  • 10: $0.43465
  • 100: $0.33956

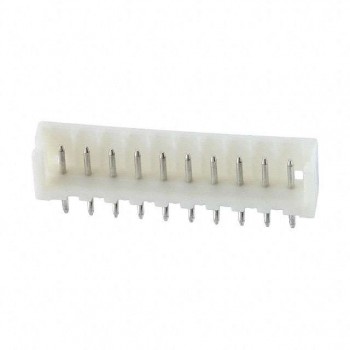

1-177537-0
