In Stock: 4,183

Can ship immediately

Pricing:
  • 1$0.53
  • 10$0.50138
  • 100$0.38436
  • 500$0.33426
  • 1,000$0.27577
  • 5,000$0.24234
  • 10,000$0.22563

Quote It

Technical Details

  • Series:Economy Power
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.156" (3.96mm)
  • Number of Positions:8
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 1 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Friction Lock
  • Contact Length - Mating:0.303" (7.70mm)



  • Contact Length - Post:0.146" (3.70mm)
  • Overall Contact Length:0.567" (14.40mm)
  • Insulation Height:0.118" (3.00mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
  • Features:-
  • Operating Temperature:-25°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Blue
  • Current Rating (Amps):7.5A
  • Voltage Rating:250VAC

Related Products


1-292173-5

CONN HEADER SMD R/A 5POS 2MM

1-292173-5 Datasheet
  • 1: $0.84000
  • 500: $0.51550
  • 1000: $0.45822

1775470-6

CONN HEADER SMD 6POS 2MM

1775470-6 Datasheet
  • 1: $0.85000
  • 500: $0.57912
  • 1000: $0.52119

54025-04-0200-01

WIRE-TO BOARD HEADER, 2.5MM, 4 C

  • 1: $0.54000

4-1971906-5

CONN HEADER VERT 10POS 3.3MM

4-1971906-5 Datasheet
  • 1: $0.55000
  • 10: $0.51741
  • 25: $0.46567

0907793001

CONN HEADER VERT 4POS 1.27MM

0907793001 Datasheet
  • 1: $0.54000
  • 10: $0.50300
  • 100: $0.38590

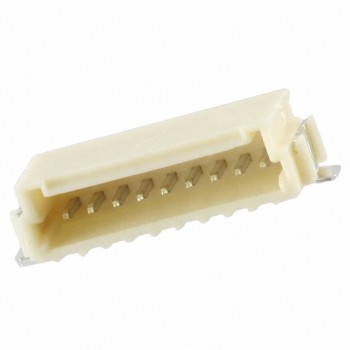

292228-9

CONN HEADER SMD R/A 9POS 1.5MM

292228-9 Datasheet
  • 1: $0.86000
  • 700: $0.58620
  • 1400: $0.52758

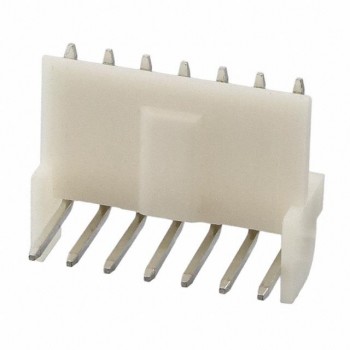

171826-7

CONN HEADER R/A 7POS 2.5MM

171826-7 Datasheet
  • 1: $0.55000
  • 10: $0.52060
  • 100: $0.40709

G874D021202CEU

CONN HEADER VERT 2POS

G874D021202CEU Datasheet
  • 1: $0.56000
  • 10: $0.52138
  • 100: $0.39972

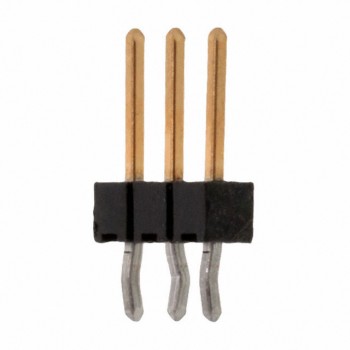

104344-1

CONN HEADER VERT 3POS 2.54MM

104344-1 Datasheet
  • 1: $0.55000
  • 10: $0.51400
  • 100: $0.39410

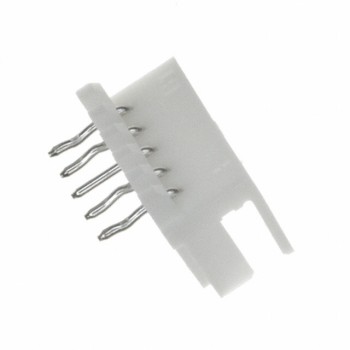

292250-5
