In Stock: 1,732

Can ship immediately

Pricing:
  • 1$1.13
  • 10$1.024
  • 100$0.8776
  • 500$0.73134
  • 1,000$0.62687

Quote It

Technical Details

  • Series:Power Double Lock
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Tab
  • Pitch - Mating:0.256" (6.50mm)
  • Number of Positions:3
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Kinked Pin, Solder
  • Fastening Type:Locking Ramp
  • Contact Length - Mating:-



  • Contact Length - Post:0.150" (3.81mm)
  • Overall Contact Length:-
  • Insulation Height:0.575" (14.60mm)
  • Contact Shape:Rectangular
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Polyamide (PA66), Nylon 6/6
  • Features:Board Guide
  • Operating Temperature:-30°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:-

Related Products


3020-26-0300-00-TR

CONN HEADER SMD 26POS 2.54MM

  • 1: $1.62000

0026202061

CONN HEADER VERT 6POS 3.96MM

0026202061 Datasheet
  • 1: $1.14000
  • 10: $0.99900
  • 100: $0.86170

292175-9

CONN HEADER SMD 9POS 2MM

292175-9 Datasheet
  • 1: $1.72000
  • 700: $1.23264
  • 1400: $1.07460

5-146278-8

CONN HEADER VERT 8POS 2.54MM

5-146278-8 Datasheet
  • 1: $1.15000
  • 10: $1.01234
  • 100: $0.87308

179839-1

CONN HEADER VERT 3POS 3.96MM

179839-1 Datasheet
  • 1: $1.16000
  • 10: $1.01683
  • 340: $0.79764

0460150407

CONN HEADER VERT 4POS 4.2MM

0460150407 Datasheet
  • 1: $1.17000
  • 10: $1.02980
  • 100: $0.88799

0466220400

CONN HEADER SMD R/A 4POS 3MM

0466220400 Datasheet
  • 1: $1.66000
  • 230: $1.29109
  • 460: $1.16813

DF13EA-20DP-1.25V(82)

CONN HEADER SMD 20POS 1.25MM

DF13EA-20DP-1.25V(82) Datasheet
  • 1: $2.47000
  • 1000: $1.09500

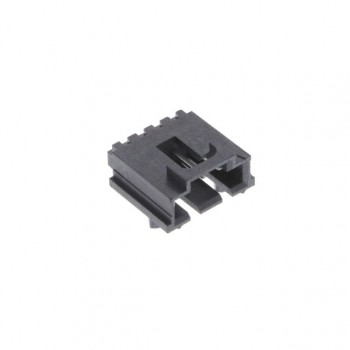

1719750004

CONN HEADER R/A 4POS 2.54MM

1719750004 Datasheet
  • 1: $1.18000
  • 38: $0.97553
  • 114: $0.89430

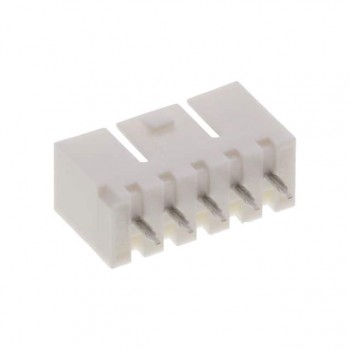

0532583005
