In Stock: 3,866

Can ship immediately

Pricing:
  • 1$1.23
  • 10$1.09344
  • 100$0.95417
  • 500$0.79516
  • 1,000$0.71565
  • 5,000$0.63613
  • 10,000$0.6083

Quote It

Technical Details

  • Series:CT
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:15
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Kinked Pin, Solder
  • Fastening Type:Detent Lock
  • Contact Length - Mating:0.165" (4.20mm)



  • Contact Length - Post:0.126" (3.20mm)
  • Overall Contact Length:0.358" (9.09mm)
  • Insulation Height:0.268" (6.80mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA66), Nylon 6/6
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:125VAC

Related Products


0466220201

CONN HEADER SMD R/A 2POS 3MM

0466220201 Datasheet
  • 1: $1.75000
  • 230: $1.36457
  • 460: $1.23463

173081-4

CONN HEADER VERT 4POS 2.5MM

173081-4 Datasheet
  • 1: $1.24000
  • 10: $1.08863
  • 100: $0.93889

292175-7

CONN HEADER SMD 7POS 2MM

292175-7 Datasheet
  • 1: $2.16000
  • 700: $1.33533
  • 1400: $1.16413

1-1734829-0

CONN HEADER R/A 10POS 1.25MM

1-1734829-0 Datasheet
  • 1: $1.25000
  • 43: $1.04877
  • 129: $0.96801

3-644893-3

CONN HEADER VERT 3POS 2.54MM

3-644893-3 Datasheet
  • 1: $1.25000
  • 10: $1.09500
  • 100: $0.94490

103672-1

CONN HEADER R/A 2POS 2.54MM

103672-1 Datasheet
  • 1: $1.25000
  • 70: $0.99055
  • 140: $0.94748

794876-1

CONN HEADER VERT 2POS 6.35MM

794876-1 Datasheet
  • 1: $1.25000
  • 10: $1.09700
  • 100: $0.94620

3210-14-002-12-00

CONN HEADER R/A 14POS 1.27MM

3210-14-002-12-00 Datasheet
  • 1: $1.26000
  • 1980: $1.26000

4282-1-0100-18-SP

CONN HEADER VERT 18POS DL 94V-0

  • 1: $1.26000

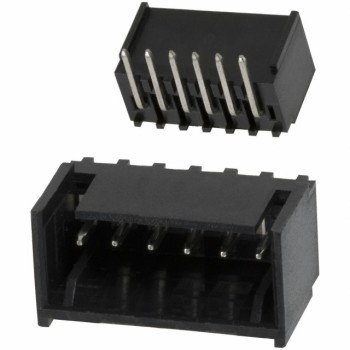

2-644803-6
