2011970300

Woodhead - Molex
In Stock: 2,399

Can ship immediately

Pricing:
  • 1$1.84
  • 380$1.08584
  • 760$0.97155
  • 1,140$0.85725
  • 1,900$0.82867
  • 2,660$0.8001
  • 9,500$0.74295

Quote It

Technical Details

  • Series:Spot-On 2.0 201197
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:30
  • Number of Rows:2
  • Row Spacing - Mating:0.165" (4.20mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:-



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.354" (9.00mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:39.4µin (1.00µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA), Nylon, Glass Filled
  • Features:Solder Retention
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:250V

Related Products


1-292253-3

CONN HEADER R/A 13POS 2MM

1-292253-3 Datasheet
  • 1: $1.30000
  • 10: $1.13905
  • 100: $0.98233

1-641938-1

CONN HEADER VERT 8POS 3.96MM

1-641938-1 Datasheet
  • 1: $1.30000
  • 10: $1.15597
  • 100: $1.00876

825433-9

CONN HEADER VERT 9POS 2.54MM

825433-9 Datasheet
  • 1: $1.31000
  • 10: $1.15631
  • 100: $0.99756

2-292141-2

CONN HEADER VERT 22POS 2MM

2-292141-2 Datasheet
  • 1: $1.33000
  • 10: $1.17745
  • 160: $1.02751

3-647630-5

CONN HEADER R/A 5POS 2.54MM

3-647630-5 Datasheet
  • 1: $1.32000
  • 10: $1.16453
  • 100: $1.01591

0417920513

CONN HEADER R/A 4POS 3.96MM

0417920513 Datasheet
  • 1: $1.32000
  • 10: $1.15700
  • 100: $0.99840

103634-4

CONN HEADER R/A 5POS 2.54MM

103634-4 Datasheet
  • 1: $1.32000
  • 35: $1.09341
  • 105: $1.00237

0307005061

CONN HEADER R/A 6POS 2.54MM

0307005061 Datasheet
  • 1: $1.33000
  • 10: $1.16879
  • 100: $1.00818

3-641209-3

CONN HEADER VERT 3POS 3.96MM

3-641209-3 Datasheet
  • 1: $1.32000
  • 10: $1.16439
  • 100: $1.00417

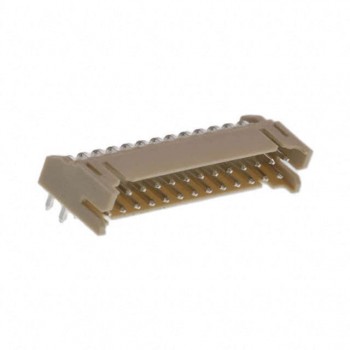

2-1470108-6
