0901362109

Woodhead - Molex
In Stock: 2,879

Can ship immediately

Pricing:
  • 1$1.37
  • 10$1.24307
  • 100$1.06538
  • 960$0.86243
  • 1,920$0.73559
  • 5,760$0.67471
  • 10,560$0.65949

Quote It

Technical Details

  • Series:C-Grid III 90136
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:9
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:0.266" (6.75mm)



  • Contact Length - Post:0.114" (2.90mm)
  • Overall Contact Length:-
  • Insulation Height:0.284" (7.21mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:118.1µin (3.00µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyester, Glass Filled
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


4282-1-0100-20-SP

CONN HEADER VERT 20POS DL 94V-0

  • 1: $1.38000

3-641121-3

CONN HEADER R/A 3POS 3.96MM

3-641121-3 Datasheet
  • 1: $1.37000
  • 10: $1.21473
  • 100: $1.05983

6-1971845-5

CONN HEADER VERT 5POS 5MM

6-1971845-5 Datasheet
  • 1: $1.37000
  • 10: $1.20600
  • 100: $1.04060

1053092105

CONN HEADER VERT 5POS 2.5MM

1053092105 Datasheet
  • 1: $1.39000
  • 10: $1.22564
  • 120: $1.05713

10112684-G03-04ULF

CONN HEADER SMD R/A 4POS 2MM

10112684-G03-04ULF Datasheet
  • 1: $1.37000
  • 72: $1.08990
  • 144: $1.04247

3-292208-0

CONN HEADER VERT 30POS 1.5MM

3-292208-0 Datasheet
  • 1: $1.39000
  • 10: $1.23283
  • 100: $1.07584

0903257014

CONN HEADER VERT 14POS 1.27MM

  • 1: $1.39000

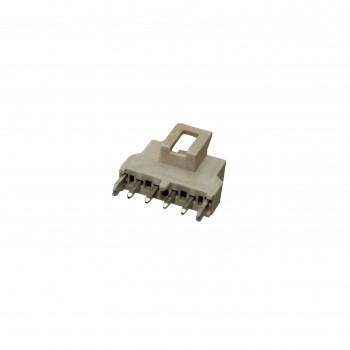

1053112104

CONN HEADER VERT 4POS 2.5MM

1053112104 Datasheet
  • 1: $1.41000
  • 10: $1.24364
  • 126: $1.07251

0878310421

CONN HEADER VERT 4POS 2MM

0878310421 Datasheet
  • 1: $1.39000
  • 10: $1.22500
  • 100: $1.05710

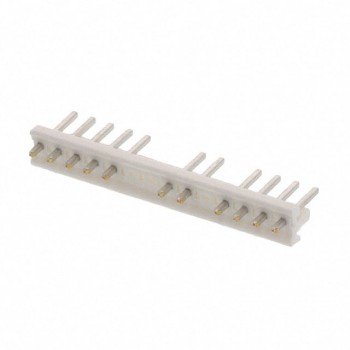

643710-7
