In Stock: 3,075

Can ship immediately

Pricing:
  • 1$1.4
  • 10$1.23504
  • 100$1.06584
  • 500$0.87204
  • 1,000$0.77514
  • 5,000$0.67825
  • 10,000$0.64434

Quote It

Technical Details

  • Series:Minitek®
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:10
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Shrouded - 2 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.157" (4.00mm)



  • Contact Length - Post:0.122" (3.10mm)
  • Overall Contact Length:-
  • Insulation Height:0.220" (5.60mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold, GXT™
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:Keying Slot
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Cream
  • Current Rating (Amps):2A (AC/DC)
  • Voltage Rating:200V (AC/DC)

Related Products


917745-1

CONN HEADER VERT 3POS 6.5MM

917745-1 Datasheet
  • 1: $1.40000
  • 10: $1.27300
  • 100: $1.09110

0908140820

CONN HEADER SMD 20POS 1.27MM

0908140820 Datasheet
  • 1: $1.40000
  • 18: $1.26778
  • 108: $1.08657

78208-107HLF

CONN HEADER R/A 7POS 2.54MM

78208-107HLF Datasheet
  • 1: $1.40000
  • 10: $1.24275
  • 100: $1.08429

3-1969570-0

CONN HEADER VERT 30POS 2.5MM

3-1969570-0 Datasheet
  • 1: $1.40000
  • 10: $1.22993
  • 100: $1.06068

1719720006

CONN HEADER VERT 6POS 2.54MM

1719720006 Datasheet
  • 1: $1.40000
  • 23: $1.23348
  • 115: $1.06435

1-1969694-2

CONN HEADER R/A 2POS 6MM

1-1969694-2 Datasheet
  • 1: $1.42000
  • 10: $1.25039
  • 112: $1.07874

826634-5

CONN HEADER R/A 10POS 2.54MM

826634-5 Datasheet
  • 1: $1.41000
  • 10: $1.23600
  • 100: $1.06610

1376387-1

CONN HEADER VERT 6POS 5MM

1376387-1 Datasheet
  • 1: $1.41000
  • 10: $1.24942
  • 100: $1.09040

AWHW2 16A-0202

CONN HEADER R/A 16POS 2MM

AWHW2 16A-0202 Datasheet
  • 1: $1.43000
  • 25: $1.22230
  • 100: $1.11601

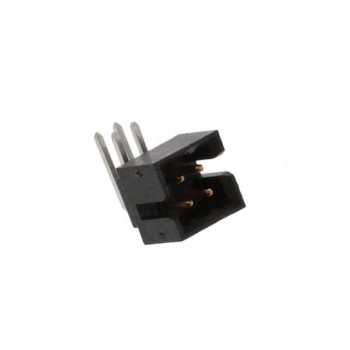

0878330421
