0901361107

Woodhead - Molex
In Stock: 3,430

Can ship immediately

Pricing:
  • 1$1.54

Quote It

Technical Details

  • Series:C-Grid III 90136
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:7
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:0.266" (6.75mm)



  • Contact Length - Post:0.114" (2.90mm)
  • Overall Contact Length:0.510" (12.95mm)
  • Insulation Height:0.429" (10.90mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:118.1µin (3.00µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyester, Glass Filled
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


0417910836

CONN HEADER VERT 6POS 3.96MM

0417910836 Datasheet
  • 1: $1.53000
  • 10: $1.38935
  • 100: $1.19064

292171-9

CONN HEADER SMD 9POS 2MM

292171-9 Datasheet
  • 1: $1.54000
  • 20: $1.39479
  • 100: $1.19531

3-1969570-2

CONN HEADER VERT 32POS 2.5MM

3-1969570-2 Datasheet
  • 1: $1.54000
  • 10: $1.39953
  • 100: $1.19954

0878310821

CONN HEADER VERT 8POS 2MM

0878310821 Datasheet
  • 1: $1.54000
  • 10: $1.40000
  • 100: $1.20020

0440670402

CONN HEADER VERT 4POS 3MM

0440670402 Datasheet
  • 1: $1.56000
  • 10: $1.41616
  • 100: $1.21427

4282-1-0100-24-SP

CONN HEADER VERT 24POS DL 94V-0

  • 1: $1.55000

2029104-4

CONN HEADER SMD R/A 4POS 3MM

2029104-4 Datasheet
  • 1: $1.90000
  • 215: $1.47470
  • 430: $1.33423

1-292250-3

CONN HEADER R/A 13POS 2MM

1-292250-3 Datasheet
  • 1: $1.55000
  • 10: $1.41522
  • 100: $1.22787

0466220202

CONN HEADER SMD R/A 2POS 3MM

0466220202 Datasheet
  • 1: $2.21000
  • 230: $1.72074
  • 460: $1.55687

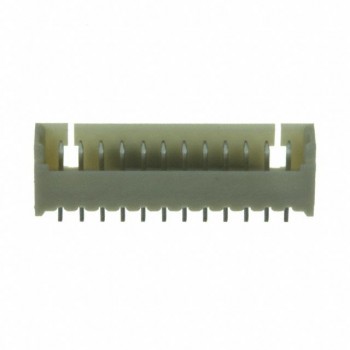

1-1734598-2
