1053092107
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant

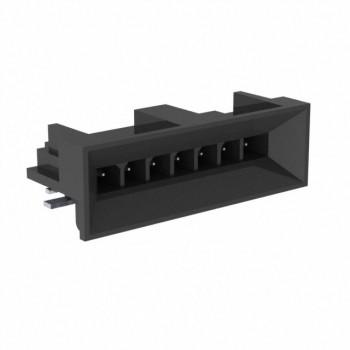

- DescriptionCONN HEADER VERT 7POS 2.5MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 1053092107 Datasheet
-
ECAD Model
- Share
In Stock: 1,940
Can ship immediately
Pricing:
- 1$1.6
- 90$1.30734
- 180$1.24788
- 540$1.03991
- 1,080$0.89134
- 5,040$0.79032
- 10,080$0.7725
Quote It
Technical Details
- Series:Nano-Fit 105309
- Package:Tray
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.098" (2.50mm)
- Number of Positions:7
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Kinked Pin, Solder
- Fastening Type:Latch Holder
- Contact Length - Mating:-
- Contact Length - Post:0.126" (3.20mm)
- Overall Contact Length:-
- Insulation Height:0.356" (9.05mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:59.0µin (1.50µm)
- Contact Finish - Post:Tin
- Contact Material:Brass
- Insulation Material:Liquid Crystal Polymer (LCP)
- Features:Board Guide
- Operating Temperature:-40°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:-
- Insulation Color:Natural
- Current Rating (Amps):-
- Voltage Rating:250V
