In Stock: 1,205

Can ship immediately

Pricing:
  • 1$1.84
  • 30$1.56917
  • 120$1.43272
  • 510$1.19393
  • 1,020$1.02337
  • 5,010$0.90739
  • 10,020$0.88692

Quote It

Technical Details

  • Series:High Performance Interconnect (HPI)
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.049" (1.25mm)
  • Number of Positions:15
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:-
  • Contact Length - Mating:-



  • Contact Length - Post:0.067" (1.70mm)
  • Overall Contact Length:-
  • Insulation Height:0.185" (4.70mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:120.0µin (3.05µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Polyamide (PA9T), Nylon 9T, Glass Filled
  • Features:-
  • Operating Temperature:-25°C ~ 85°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):1A
  • Voltage Rating:100VAC

Related Products


0466220601

CONN HEADER SMD R/A 6POS 3MM

0466220601 Datasheet
  • 1: $2.63000
  • 230: $2.04265
  • 460: $1.84813

1-103638-0

CONN HEADER VERT 11POS 2.54MM

1-103638-0 Datasheet
  • 1: $1.85000
  • 18: $1.68708
  • 108: $1.46449

2-644489-2

CONN HEADER R/A 2POS 2.54MM

2-644489-2 Datasheet
  • 1: $1.85000
  • 10: $1.68104
  • 100: $1.44043

1-640453-5

CONN HEADER R/A 15POS 2.54MM

1-640453-5 Datasheet
  • 1: $1.85000
  • 10: $1.69449
  • 100: $1.47044

0022124092

CONN HEADER R/A 9POS 2.54MM

0022124092 Datasheet
  • 1: $1.86000
  • 10: $1.69200
  • 100: $1.45050

0466220502

CONN HEADER SMD R/A 5POS 3MM

0466220502 Datasheet
  • 1: $2.66000
  • 230: $2.12961
  • 460: $1.86339

103673-6

CONN HEADER R/A 7POS 2.54MM

103673-6 Datasheet
  • 1: $1.87000
  • 26: $1.59171
  • 104: $1.45328

1-1969688-5

CONN HEADER VERT 5POS 6MM

1-1969688-5 Datasheet
  • 1: $1.87000
  • 10: $1.69240
  • 100: $1.45076

179849-1

CONN HEADER VERT 6POS 6.5MM

179849-1 Datasheet
  • 1: $1.87000
  • 10: $1.69400
  • 100: $1.45220

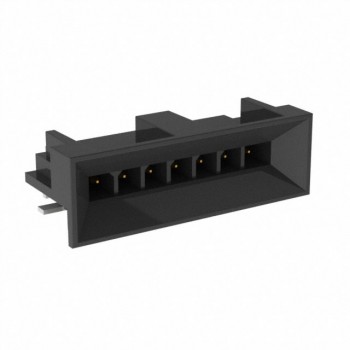

0466220701
