SBH41-NBPB-D08-SP-BK

Sullins Connector Solutions
In Stock: 938

Can ship immediately

Pricing:
  • 1$2.49
  • 10$2.391
  • 100$1.9926
  • 500$1.69372
  • 1,000$1.44464
  • 5,000$1.4391

Quote It

Technical Details

  • Series:SBH41
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.050" (1.27mm)
  • Number of Positions:16
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:-



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.228" (5.80mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:Flash
  • Contact Finish - Post:Gold
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA9T), Nylon 9T
  • Features:Board Guide, Keying Slot
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):1A
  • Voltage Rating:-

Related Products


5016453820

CONN HEADER VERT 38POS 2MM

5016453820 Datasheet
  • 1: $2.52000
  • 10: $2.42012
  • 100: $2.01655

825440-8

CONN HEADER VERT 16POS 2.54MM

825440-8 Datasheet
  • 1: $2.51000
  • 10: $2.27624
  • 100: $1.95123

10142708-12200LF

CONN HEADER VERT 12POS 5.7MM

10142708-12200LF Datasheet
  • 1: $2.53000
  • 10: $2.29913
  • 25: $2.15868

1-178136-3

CONN HEADER VERT 3POS 5.08MM

1-178136-3 Datasheet
  • 1: $2.52000
  • 10: $2.28459
  • 100: $1.95782

0430450617

CONN HEADER SMD 6POS 3MM

0430450617 Datasheet
  • 1: $3.61000
  • 200: $2.89040
  • 400: $2.52910

5030912821

CONN HEADER VERT 28POS 2MM

5030912821 Datasheet
  • 1: $2.57000
  • 70: $2.09143
  • 140: $1.99645

0741640006

CONN HEADER R/A 6POS 2.54MM

0741640006 Datasheet
  • 1: $2.55000
  • 10: $2.45300
  • 100: $2.04380

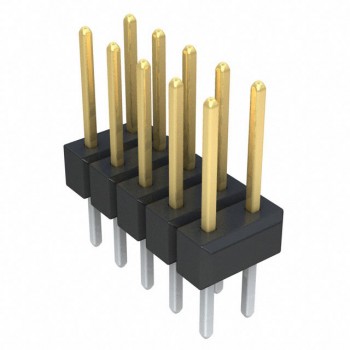

0010897103

CONN HEADER VERT 10POS 2.54MM

0010897103 Datasheet
  • 1: $2.56000
  • 10: $2.31892
  • 100: $1.98796

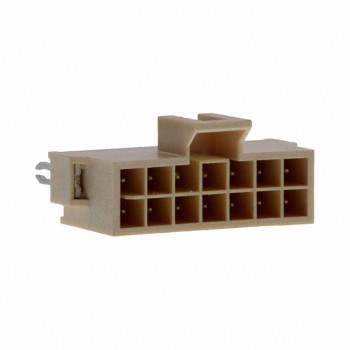

1053122114
