1-1734260-3
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER SMD 13POS 1.25MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 1-1734260-3 Datasheet
-
ECAD Model
- Share
In Stock: 4,147
Can ship immediately
Pricing:
- 1$4.59
- 1,000$2.63385
- 2,000$2.54303
- 3,000$2.45221
Quote It
Technical Details
- Series:High Performance Interconnect (HPI)
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.049" (1.25mm)
- Number of Positions:13
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 3 Wall
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:-
- Contact Length - Mating:-
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.187" (4.75mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:150.0µin (3.81µm)
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Thermoplastic
- Features:Solder Retention
- Operating Temperature:-25°C ~ 85°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Natural
- Current Rating (Amps):1A
- Voltage Rating:125V
Related Products
CONN HEADER R/A 34POS 2.54MM
- 1: $2.76000
- 10: $2.64718
- 192: $2.20556
CONN HEADER VERT 50POS 2.54MM
- 1: $2.79000
- 60: $2.34353
- 120: $2.23200
CONN HEADER R/A 50POS 2.54MM
- 1: $2.79000
- 60: $2.34353
- 120: $2.23200

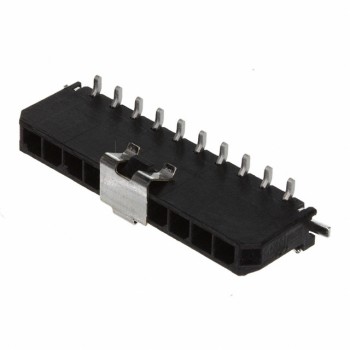

CONN HEADER SMD 10POS 3MM
