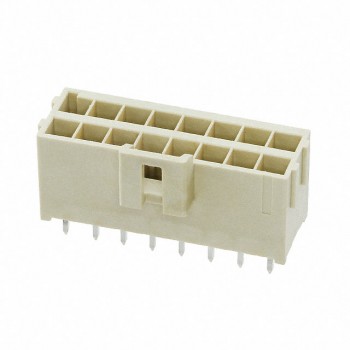

0449145803
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 8POS 3MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 0449145803 Datasheet
-
ECAD Model
- Share
In Stock: 564
Can ship immediately
Pricing:
- 1$3.7
- 10$3.5524
- 25$3.2564
- 50$3.1084
- 100$2.9604
- 250$2.59036
- 500$2.51634
- 1,440$2.14629
- 2,880$1.99827
Quote It
Technical Details
- Series:Micro-Fit 3.0 CPI 44914
- Package:Tray
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.118" (3.00mm)
- Number of Positions:8
- Number of Rows:2
- Row Spacing - Mating:0.118" (3.00mm)
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Press-Fit, Solder
- Fastening Type:Locking Ramp
- Contact Length - Mating:-
- Contact Length - Post:0.125" (3.18mm)
- Overall Contact Length:-
- Insulation Height:0.390" (9.91mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Contact Finish - Post:Tin
- Contact Material:Modified Tin/Brass Alloy
- Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
- Features:Board Guide
- Operating Temperature:-
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:-
