In Stock: 637

Can ship immediately

Pricing:
  • 1$3.9
  • 68$3.27603
  • 136$3.12
  • 544$2.652
  • 1,020$2.262

Quote It

Technical Details

  • Series:AMPMODU Mod II
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:16
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:-



  • Contact Length - Post:0.180" (4.57mm)
  • Overall Contact Length:-
  • Insulation Height:0.550" (13.97mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic, Glass Filled
  • Features:-
  • Operating Temperature:-65°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2A
  • Voltage Rating:250VAC

Related Products


1714937

CONN HEADER 1.27MM 20POS SMD

  • 1: $4.69000
  • 280: $4.51996
  • 560: $4.25407

5499345-1

CONN HEADER R/A 10POS 2.54MM

5499345-1 Datasheet
  • 1: $3.97000
  • 72: $3.38628
  • 144: $3.23906

1658694-8

CONN HEADER VERT 16POS 2.54MM

1658694-8 Datasheet
  • 1: $3.95000
  • 10: $3.79952
  • 100: $3.21507

1-641972-1

CONN HEADER VERT 9POS 6.35MM

1-641972-1 Datasheet
  • 1: $3.96000
  • 10: $3.79929
  • 100: $3.16632

68021-172HLF

CONN HEADER R/A 72POS 2.54MM

68021-172HLF Datasheet
  • 1: $3.96000
  • 10: $3.80420
  • 100: $3.16995

3-178141-3

CONN HEADER VERT 6POS 3.81MM

3-178141-3 Datasheet
  • 1: $3.97000
  • 23: $3.81104
  • 115: $3.17590

1053102314

CONN HEADER VERT 14POS 2.5MM

1053102314 Datasheet
  • 1: $4.01000
  • 90: $3.36816
  • 180: $3.20778

1714938

CONN HEADER 1.27MM 26POS SMD

  • 1: $4.78000
  • 280: $4.60089
  • 560: $4.33023

09185267902

CONN HEADER VERT 26POS 2.54MM

09185267902 Datasheet
  • 1: $3.98000
  • 10: $3.82080
  • 25: $3.50240

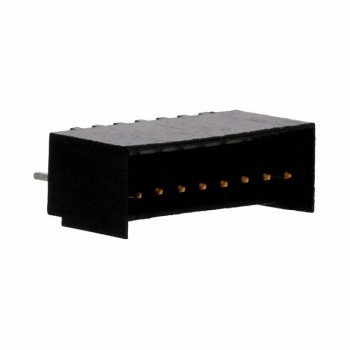

3-644897-8
