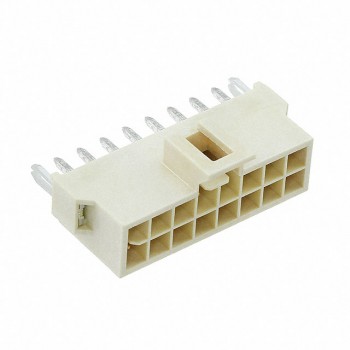

5-103169-6
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 16POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 5-103169-6 Datasheet
-
ECAD Model
- Share
In Stock: 1,605
Can ship immediately
Pricing:
- 1$4.41
- 10$4.2316
- 176$3.52596
- 528$2.99703
- 1,056$2.55631
Quote It
Technical Details
- Series:AMPMODU Mod II
- Package:Tray
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:16
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Detent Lock
- Contact Length - Mating:0.318" (8.08mm)
- Contact Length - Post:0.125" (3.18mm)
- Overall Contact Length:0.533" (13.55mm)
- Insulation Height:0.440" (11.18mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Thermoplastic
- Features:-
- Operating Temperature:-65°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):3A
- Voltage Rating:-
