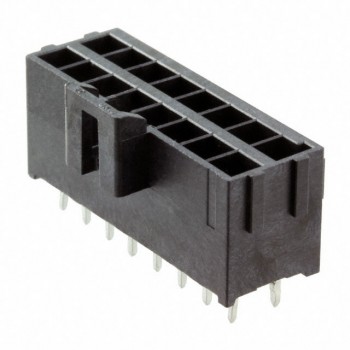

1761609-5
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER R/A 14POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 1761609-5 Datasheet
-
ECAD Model
- Share
In Stock: 1,523
Can ship immediately
Pricing:
- 1$5.95
- 20$5.72969
- 100$4.84833
- 500$4.18723
- 1,000$3.63627
Quote It
Technical Details
- Series:AMP-Latch
- Package:Tube
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:14
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Latch Lock/Eject Hooks, Short
- Contact Length - Mating:0.237" (6.02mm)
- Contact Length - Post:0.102" (2.60mm)
- Overall Contact Length:-
- Insulation Height:0.362" (9.20mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold or Gold-Palladium
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Polybutylene Terephthalate (PBT)
- Features:Keying Slot
- Operating Temperature:-65°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):1A per Contact
- Voltage Rating:250VAC
