In Stock: 1,055

Can ship immediately

Pricing:
  • 1$6.12
  • 40$5.43582
  • 120$4.98292
  • 520$4.30342
  • 1,000$3.73717

Quote It

Technical Details

  • Series:AMP-Latch
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:26
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Latch Lock/Eject Hooks, Long
  • Contact Length - Mating:0.240" (6.10mm)



  • Contact Length - Post:0.110" (2.79mm)
  • Overall Contact Length:-
  • Insulation Height:0.315" (8.00mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold or Gold-Palladium
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:-
  • Features:Keying Slot, Mounting Flange
  • Operating Temperature:-65°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Blue
  • Current Rating (Amps):1A per Contact
  • Voltage Rating:250VAC

Related Products


5499345-6

CONN HEADER R/A 26POS 2.54MM

5499345-6 Datasheet
  • 1: $6.13000
  • 40: $5.42300
  • 120: $4.95142

98464-G61-34LF

CONN HEADER R/A 34POS 2MM

98464-G61-34LF Datasheet
  • 1: $6.06000
  • 10: $5.81479
  • 100: $4.84606

0026612130

CONN HEADER VERT 13POS 3.96MM

0026612130 Datasheet
  • 1: $6.06000
  • 10: $5.80736
  • 100: $4.79730

1720650306

CONN HEADER VERT 6POS 5.7MM

1720650306 Datasheet
  • 1: $6.13000
  • 89: $5.10559
  • 178: $4.85028

09185505324

CONN HEADER VERT 50POS 2.54MM

09185505324 Datasheet
  • 1: $6.08000
  • 10: $5.83122
  • 25: $5.34528

828801-4

CONN HEADER R/A 10POS 5MM

828801-4 Datasheet
  • 1: $6.08000
  • 10: $5.83147
  • 100: $4.85956

0705430056

CONN HEADER VERT 22POS 2.54MM

  • 1: $6.09000

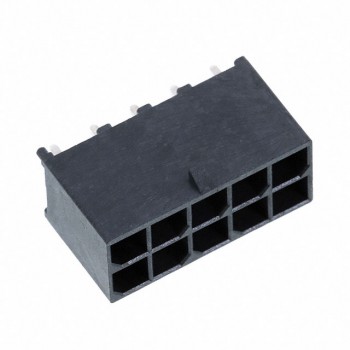

1720650210

CONN HEADER VERT 10POS 5.7MM

1720650210 Datasheet
  • 1: $6.15000
  • 54: $5.16445
  • 108: $4.91855

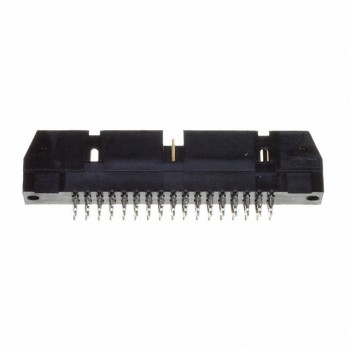

1-1658694-1
