In Stock: 776

Can ship immediately

Pricing:
  • 1$13.31
  • 16$12.09803
  • 104$10.28331
  • 504$8.77107
  • 1,000$8.04519

Quote It

Technical Details

  • Series:AMPMODU 50/50 Grid
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.050" (1.27mm)
  • Number of Positions:100
  • Number of Rows:2
  • Row Spacing - Mating:0.050" (1.27mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.120" (3.05mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.226" (5.74mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Liquid Crystal Polymer (LCP)
  • Features:Board Lock
  • Operating Temperature:-65°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):0.5A per Contact
  • Voltage Rating:-

Related Products


4-87220-0

CONN HEADER VERT 40POS 2.54MM

4-87220-0 Datasheet
  • 1: $13.39000
  • 10: $12.16851
  • 100: $10.34329

1-776180-2

CONN HEADER R/A 35POS 4MM

1-776180-2 Datasheet
  • 1: $13.71000
  • 10: $12.46000
  • 100: $10.59100

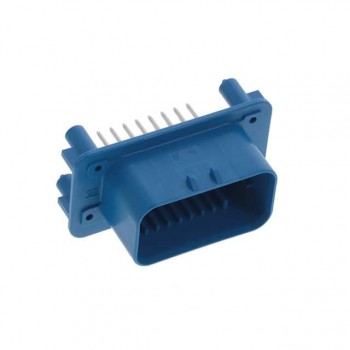

1-776200-5

CONN HEADER VERT 23POS 4MM

1-776200-5 Datasheet
  • 1: $13.77000
  • 10: $13.16700
  • 100: $11.07225

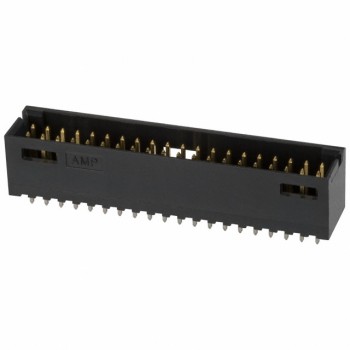

1-103168-8

CONN HEADER VERT 40POS 2.54MM

1-103168-8 Datasheet
  • 1: $14.10000
  • 40: $12.49824
  • 120: $10.89582

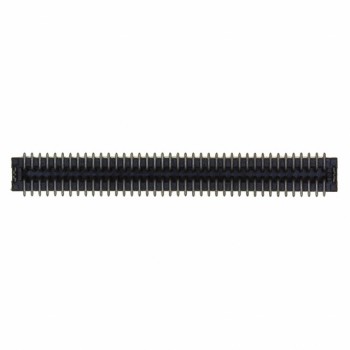

5-104693-8

CONN HEADER SMD 80POS 1.27MM

5-104693-8 Datasheet
  • 1: $14.15000
  • 18: $12.86000
  • 108: $10.93102

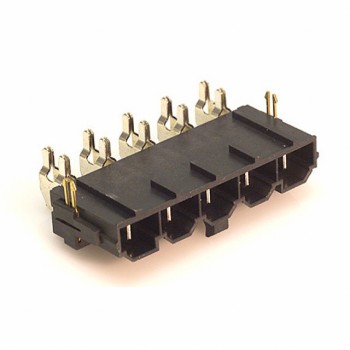

0428205212

CONN HEADER R/A 5POS 10MM

0428205212 Datasheet
  • 1: $14.15000
  • 10: $12.86306
  • 200: $10.93376

929715-03-36-I

CONN HEADER VERT 72POS 2.54MM

929715-03-36-I Datasheet
  • 1: $14.33000
  • 10: $13.02400
  • 25: $12.69840

929745-01-36-I

CONN HEADER R/A 72POS 2.54MM

929745-01-36-I Datasheet
  • 1: $14.34000
  • 10: $13.04000
  • 100: $11.08400

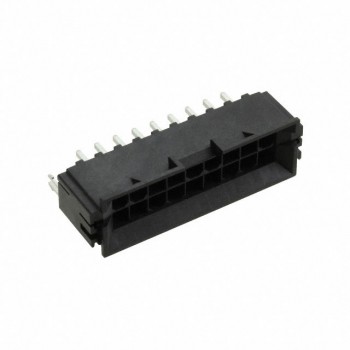

0440680107

CONN HEADER VERT 18POS 4.2MM

0440680107 Datasheet
  • 1: $14.74000
  • 10: $13.39936
  • 100: $11.38981

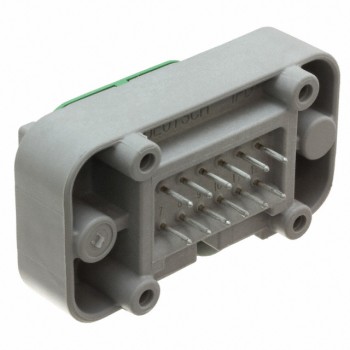

DTM15-12PC
