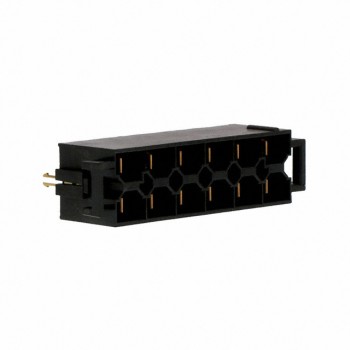

344103-1
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER R/A 18POS 5MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 344103-1 Datasheet
-
ECAD Model
- Share
In Stock: 220
Can ship immediately
Pricing:
- 1$19.64
- 10$18.23714
- 100$14.02857
- 500$12.81276
Quote It
Technical Details
- Series:EconoSeal III 070
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Tab
- Pitch - Mating:0.197" (5.00mm)
- Number of Positions:18
- Number of Rows:3
- Row Spacing - Mating:0.236" (6.00mm)
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Locking Ramp
- Contact Length - Mating:-
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:1.165" (29.60mm)
- Contact Shape:Rectangular
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin
- Contact Material:Brass
- Insulation Material:Polyamide (PA), Nylon, Glass Filled
- Features:Board Guide
- Operating Temperature:-
- Ingress Protection:-
- Material Flammability Rating:-
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:-
